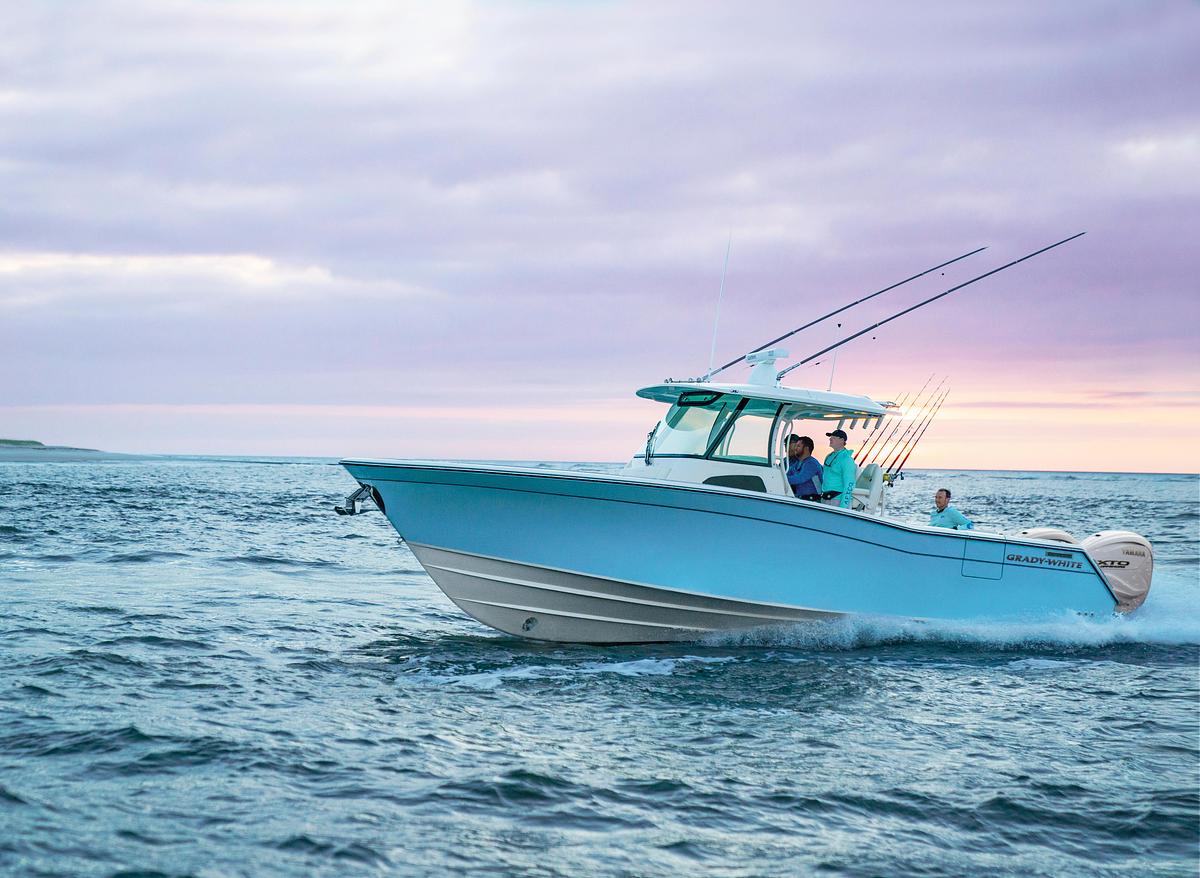

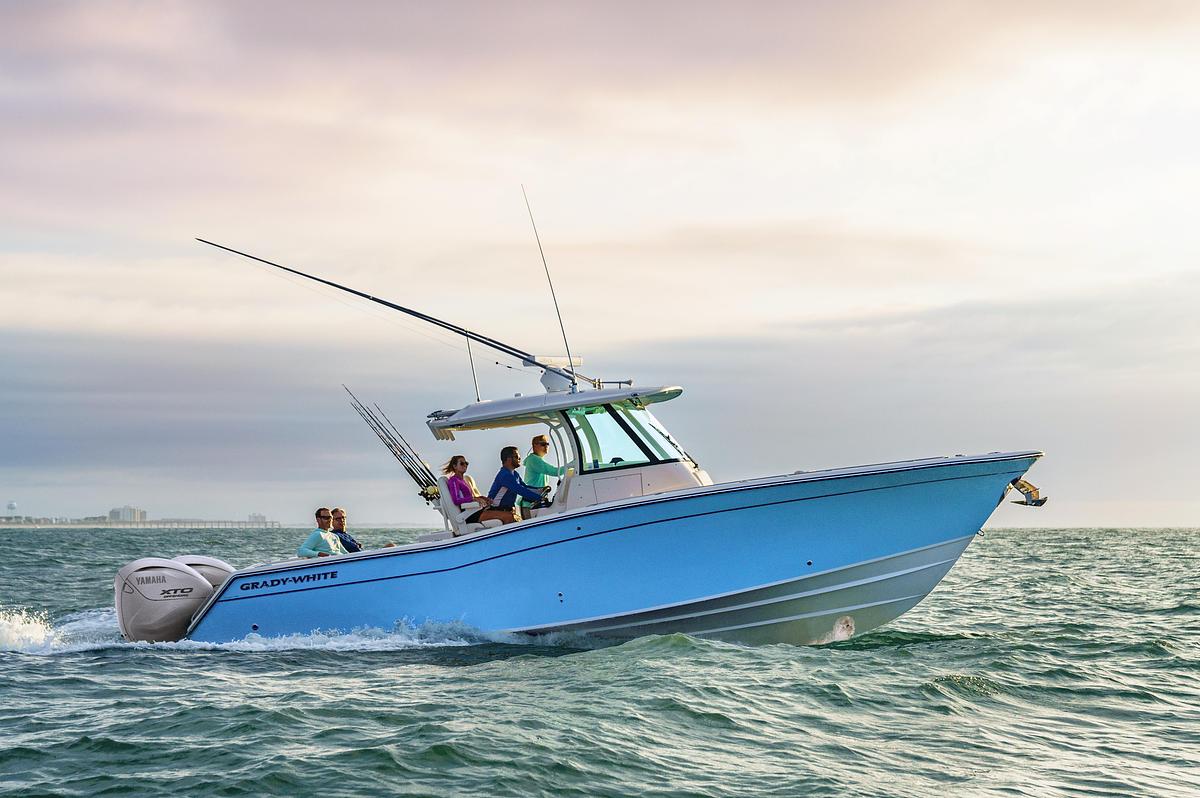

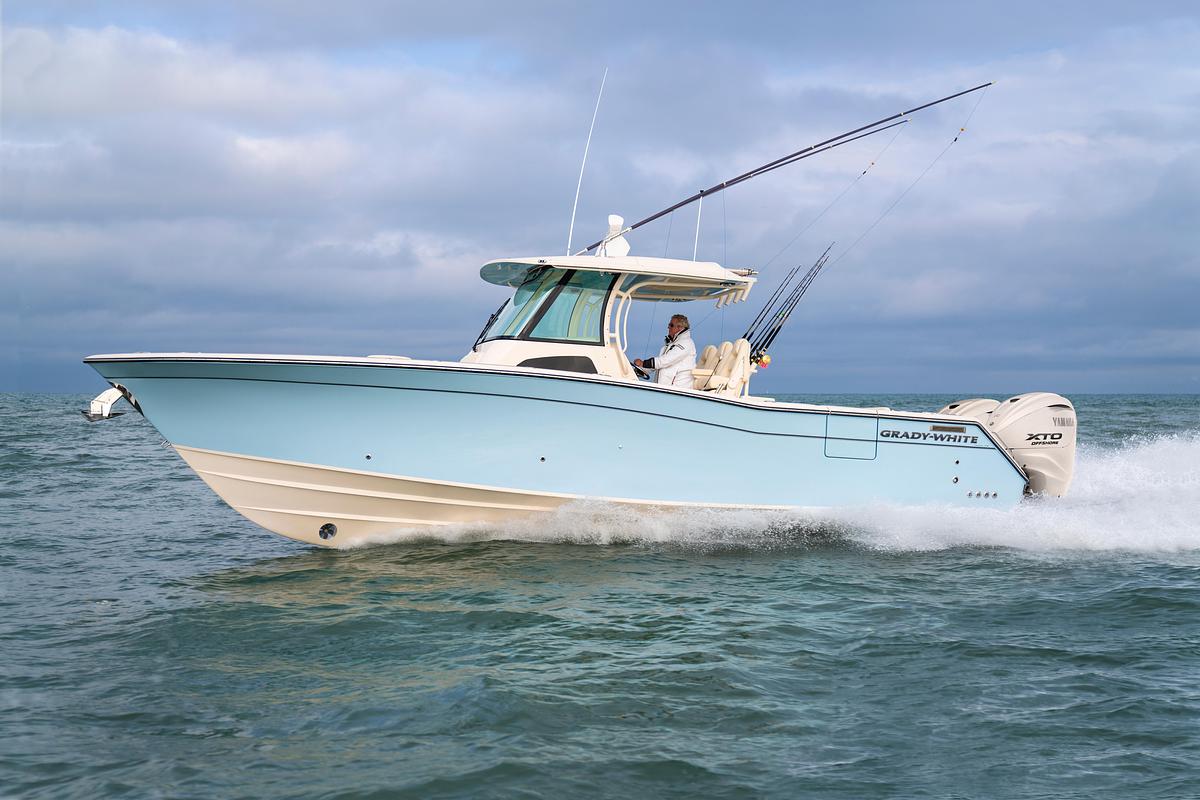

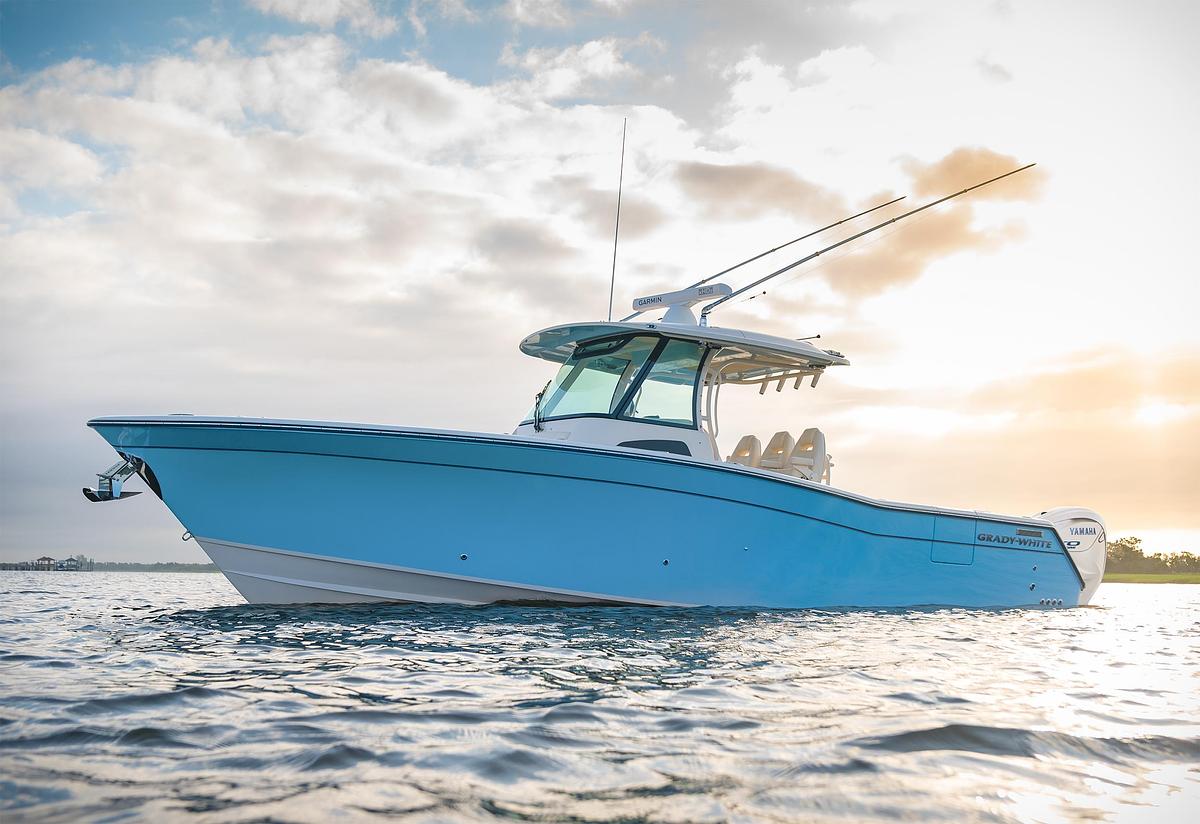

Canyon 336 33' CENTER CONSOLE

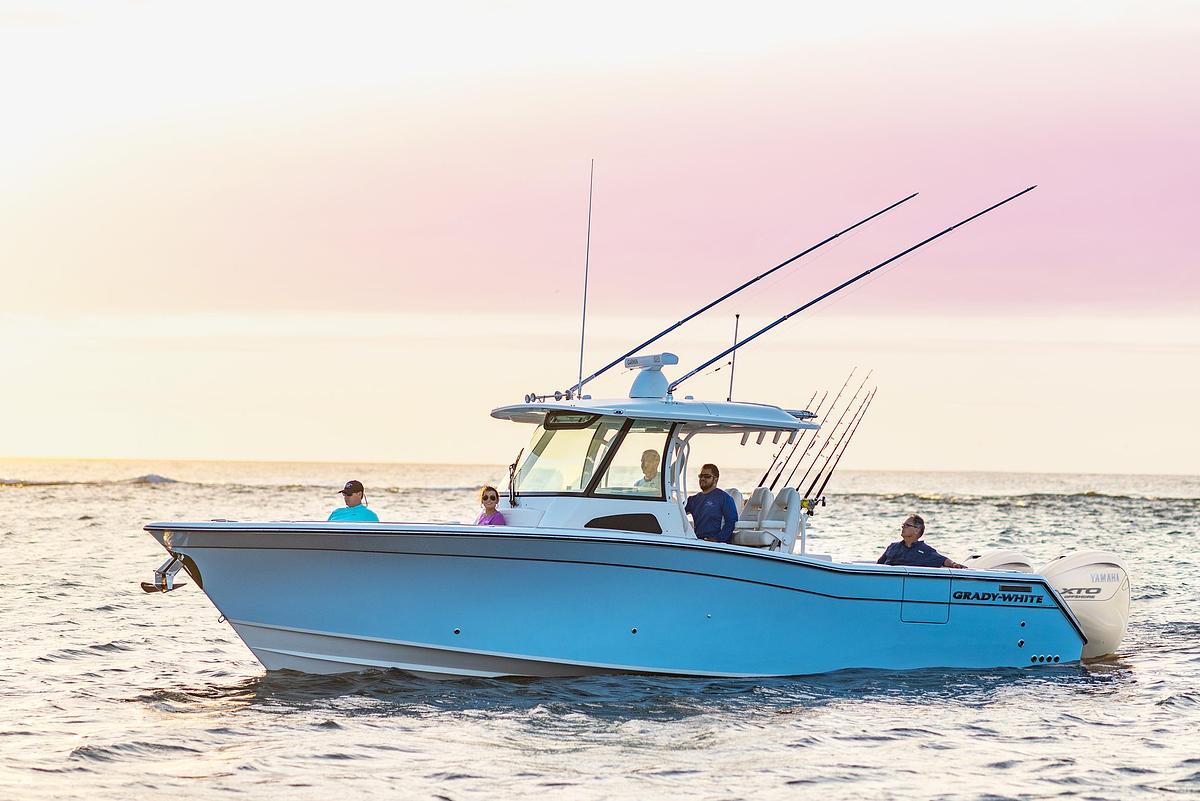

Grady-White’s Canyon 336 is the best 33-foot center console for the sportfishing family. The console design includes a spacious helm with full-height windshield and provides exceptional visibility while adding space in the cockpit and console. The 336 has numerous features throughout, including dockside power, deluxe rigging station, and a cabin with stand-up head that includes a shower and sink. You’ll be hard-pressed to find another boat of this size with the same level of enhancements and upgrades!

STANDARD FEATURES

Safety

• Automatic bilge pumps (2) (total 3000 GPH / 11 356 LPH)
• Basic flotation
• Bow grab rail – low-profile 316-grade stainless steel
• Cockpit toe rails
• Composite stringer system & transom – water impervious
• Fire extinguisher holder
• Nonskid fiberglass liner

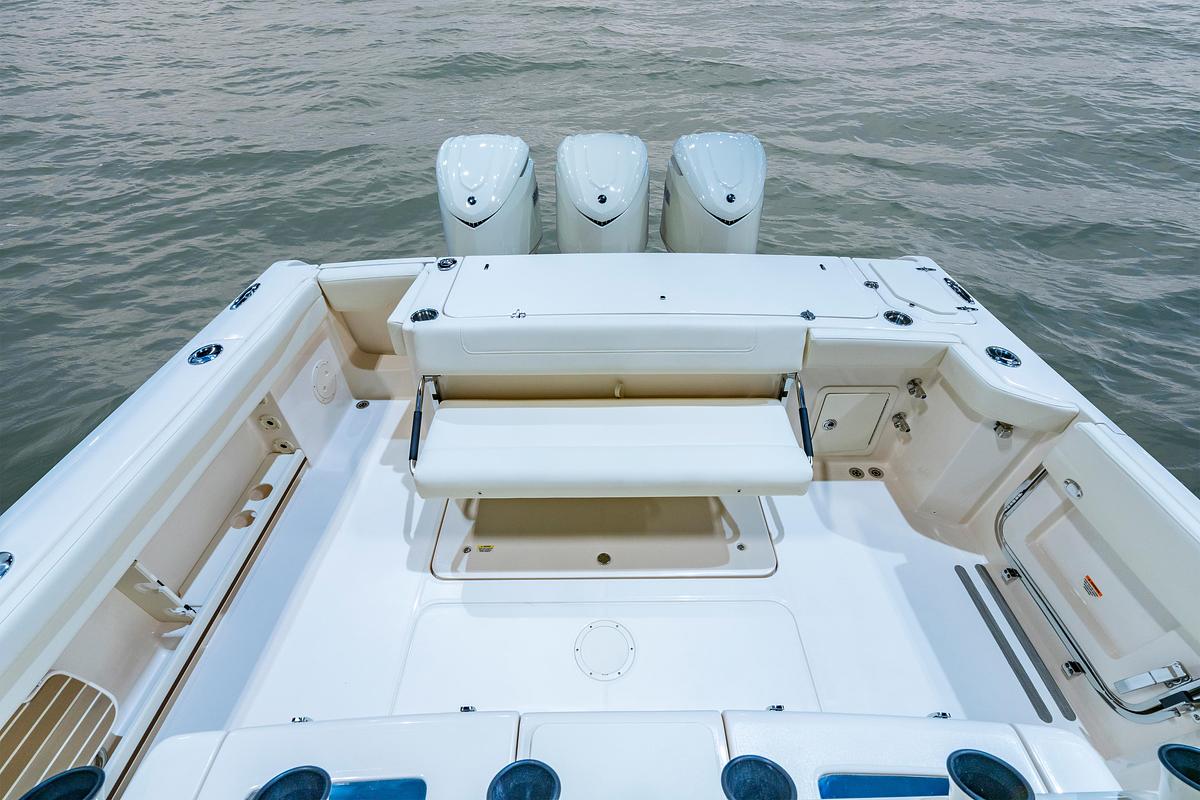

• Self-bailing cockpit w/ cockpit drains (6)
• Stainless steel through-hull fittings
• Yamaha Siren Marine Connected Boat® Monitoring System

Cockpit & Deck

• 100 % hand-laid SeaV² hull & deck
• Anchor windlass w/ rode, line, and remote switches at helm & windlass
• Batteries (4) w/ battery-select switches (one per engine) & charger system (1)
• Cleats – flush mount (pull up)
• Cockpit bolsters
• Cockpit freshwater shower (recessed)
• Cockpit lights – blue LED

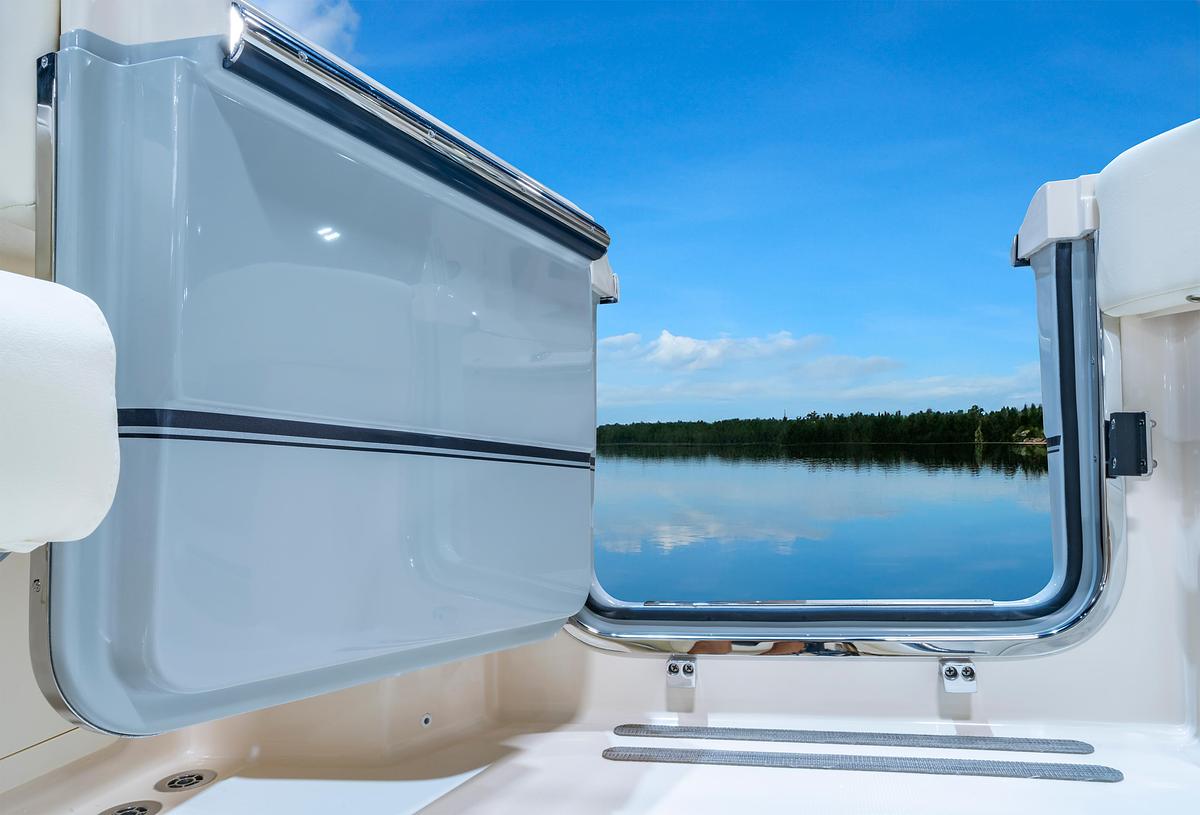

• Cockpit side door – port w/ boarding ladder
• Cutting board
• Deck hardware – 316-grade stainless steel through-bolted
• Dockside power w/ galvanic isolator
• Drink holders – stainless steel (8)
• Engine flush system w/ hose attachment aft (one per engine)
• Factory engine pre-rigging

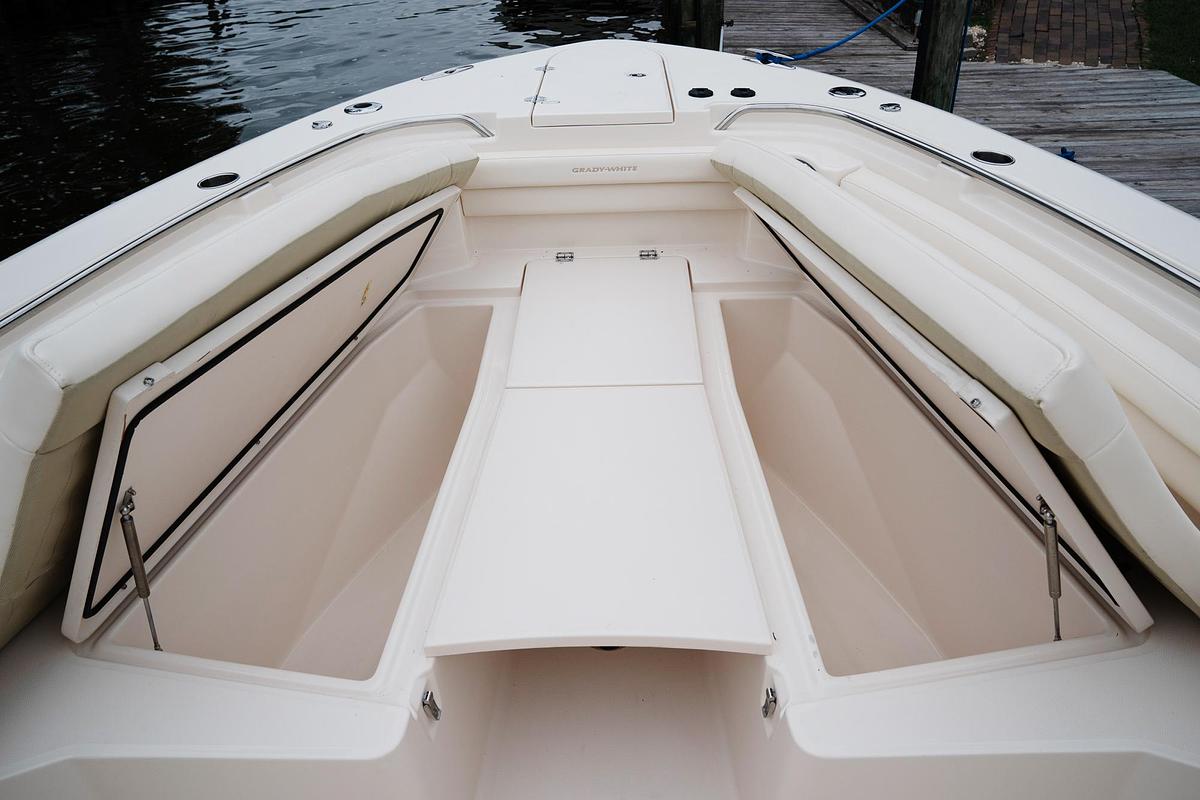

• Fish box – 204-qt. (193.1 L) port & starboard insulated fish box w/ ob drain (2)
• Fish box – 291-qt. (275.4 L) aft insulated fish box w/ lights (2) & ob drain
• Forward bolsters
• Hydraulic trim tabs w/ indicator & retractor

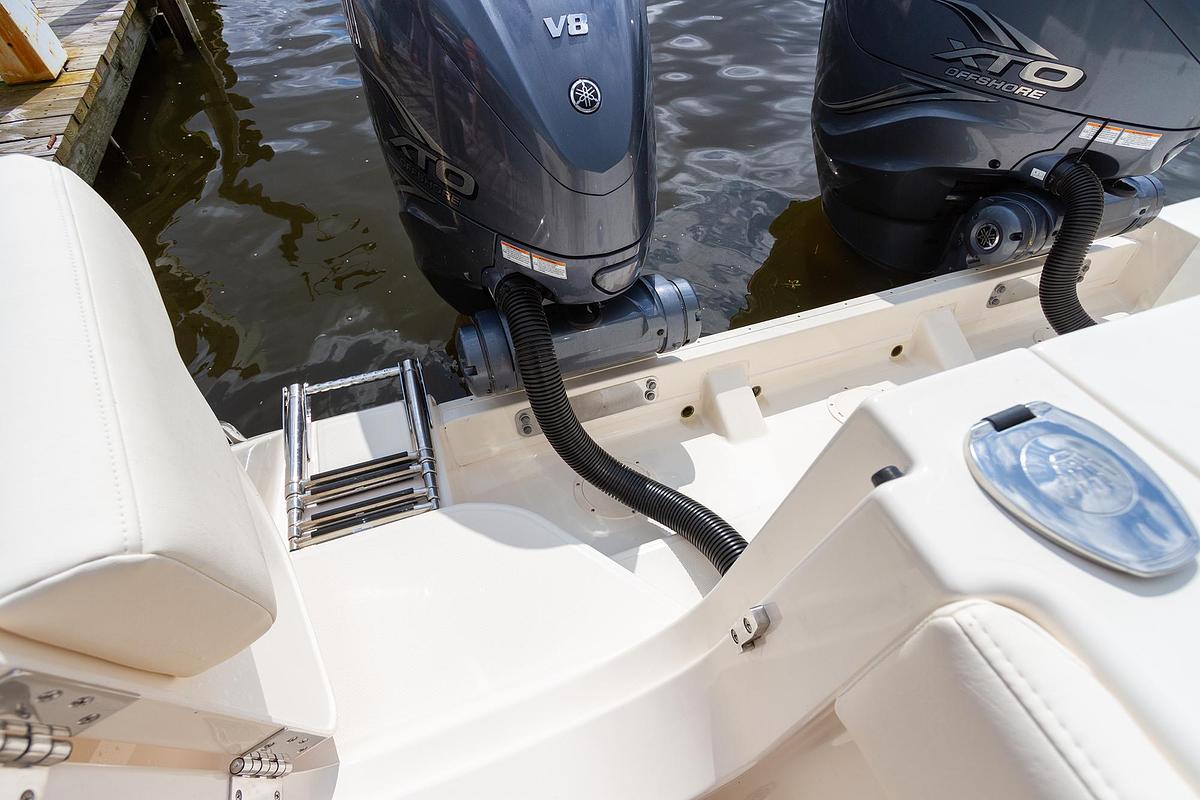

• Integrated outboard mounting system w/ swim platform & ladder
• International lighting
• Rod holders – bow (4), amidships (2), cockpit (5)
• Rod storage racks – horizontal (3)
• Rubrail – high-density PVC w/ stainless steel insert

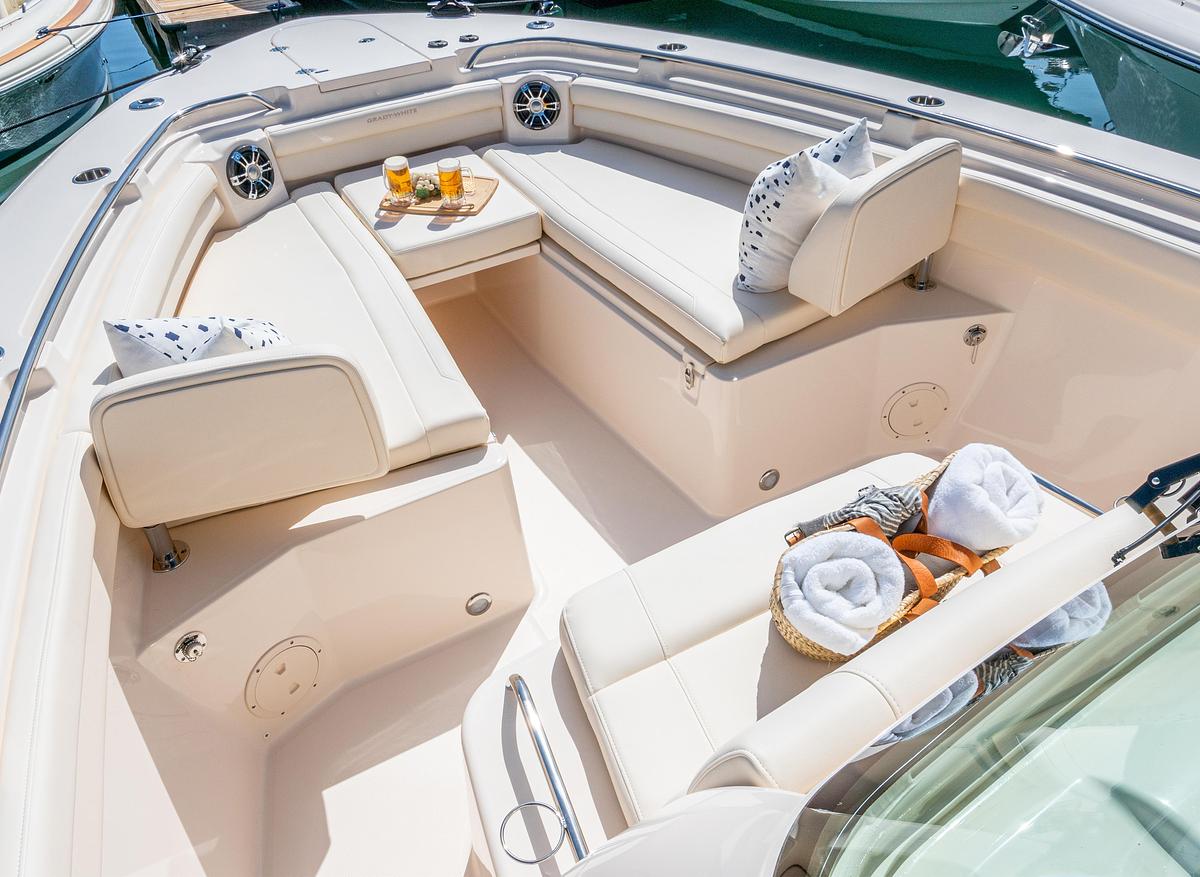

• Seating – foldaway aft bench seat w/ cushion; port & starboard bow seating w/ forward-facing foldaway bolstered backrest (2)
• Stereo – deluxe system w/ waterproof touch-screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity & helm subwoofer; speakers w/ LED lights – bow (2), helm (2), T-top (2)
• Stern eyes – 316-grade stainless steel

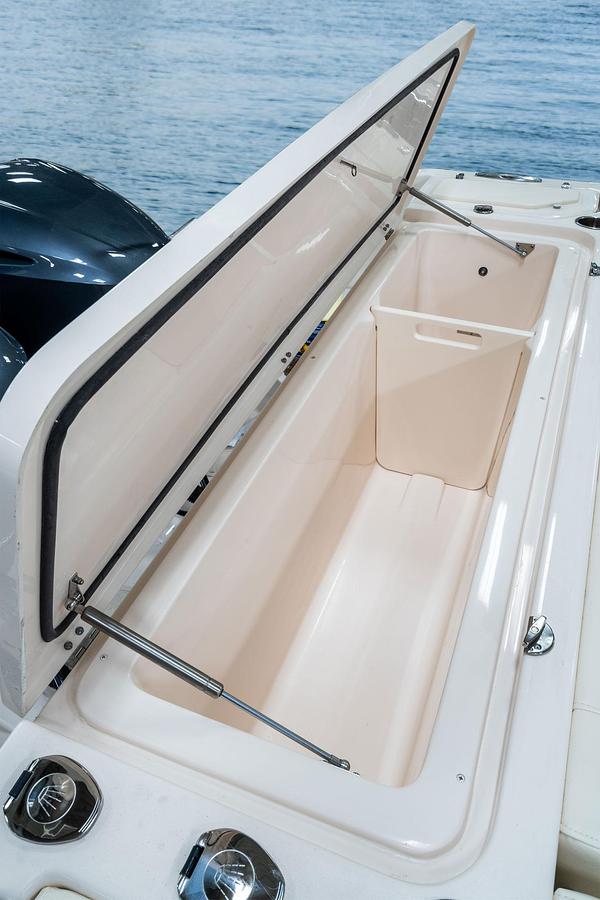

• Storage – aft transom box; forward anchor locker w/ rode storage
• Transom door – fiberglass
• Washdown – freshwater (forward & aft); pressurized raw water (forward & aft) w/ hose
• Water tank – 35-gallon (132 L) freshwater

Console

• Accessory outlets – 5 V duplex USB port (2), 12 V
• Compass
• Console ventilator
• Lockable acrylic console door
• Drink holders – stainless steel (3)

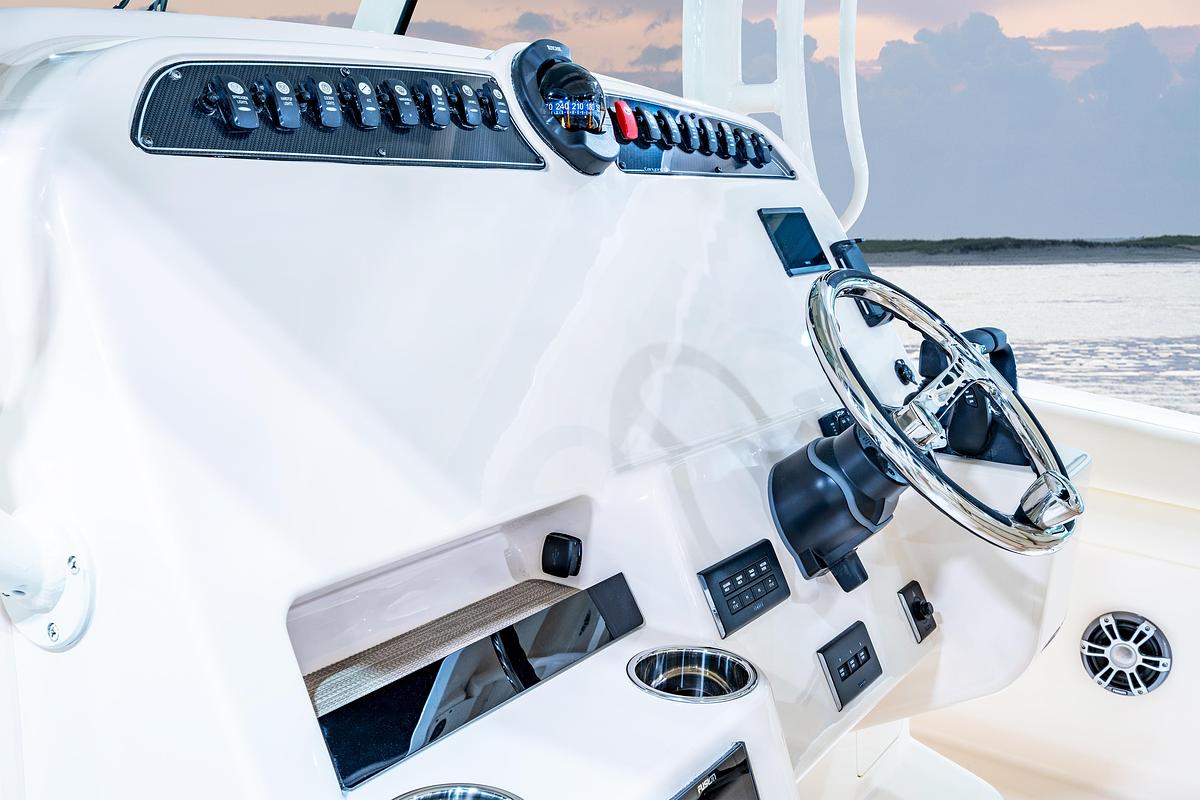

• Flush-mount electronics area
• Molded console footrest
• Phone charger (wireless) – helm mounted
• Seating – molded forward console seat w/ cushion
• Steering – Helm Master® EX w/ full maneuverability; steering wheel – 316-grade stainless steel w/ knob

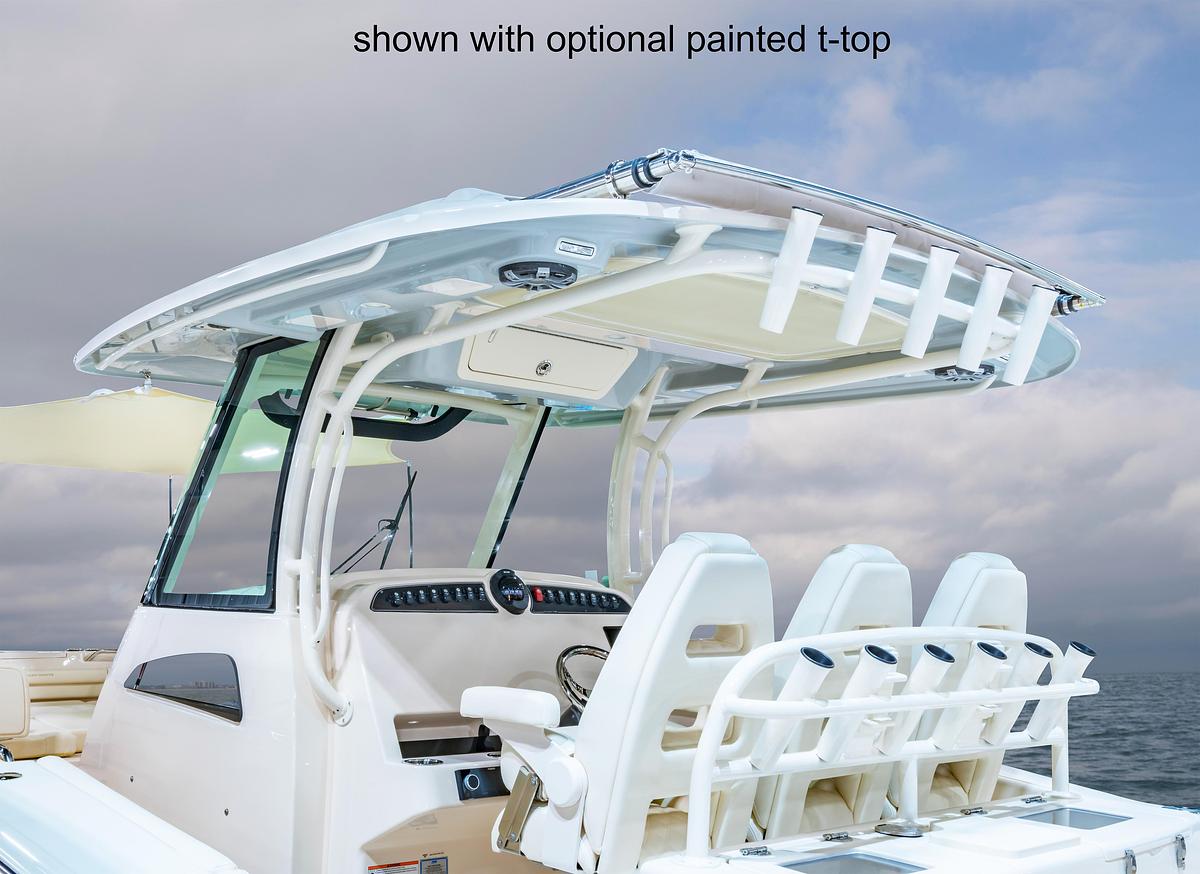

• T-top – fiberglass w/ painted aluminum frame, radio box, storage net, tri-colored LED recessed lights (4), fore/aft spreader lights (3), rod holders (5), radar flat & outrigger plates
• Tinted frameless glass window
• Laminated glass windshield integrated w/ T-top w/ electromechanically operated center vent
• Pantograph windshield wiper w/ washer

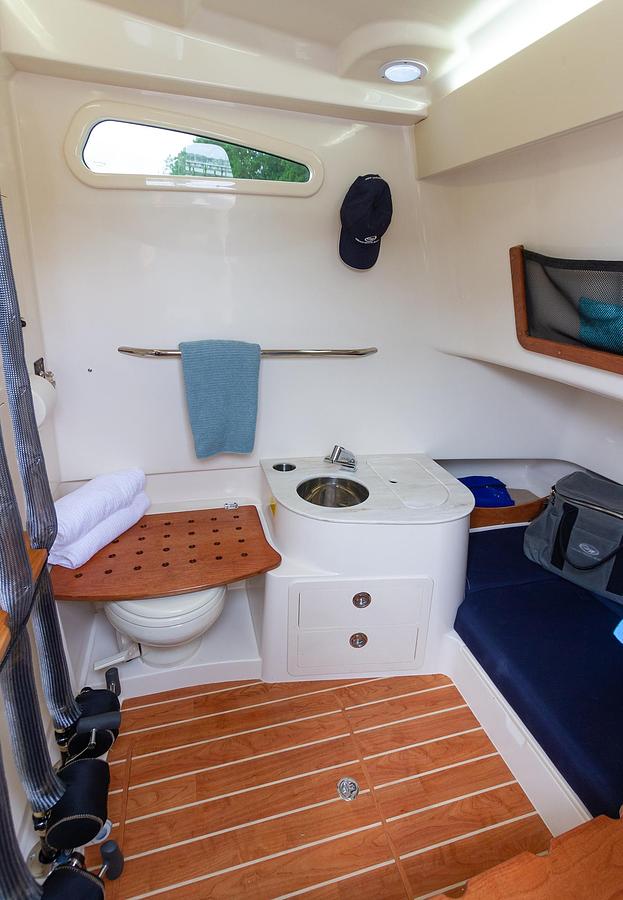

Console Interior

• Accessory outlet – 5 V duplex USB port

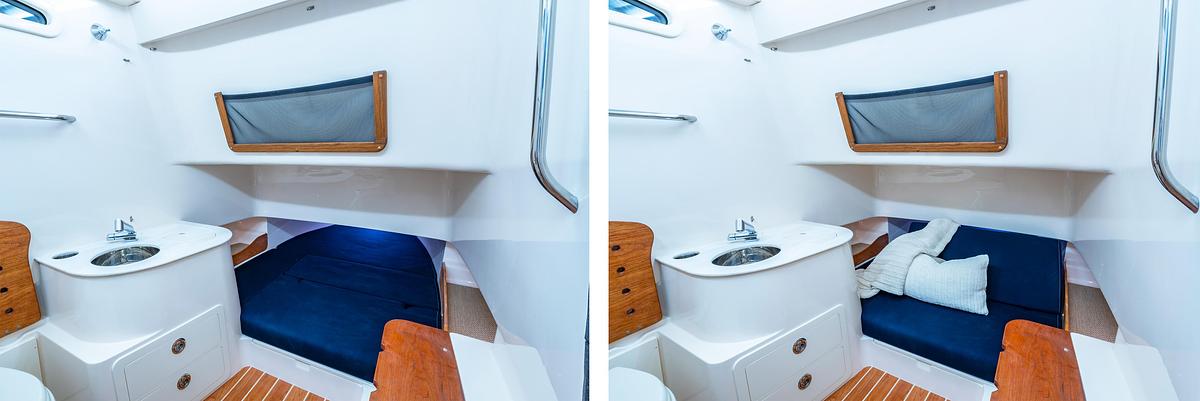

• Cushioned berth forward w/ flip-up backrest
• Carbon monoxide detector
• Composite cherry & holly sole
• Drink holder – stainless steel (1)

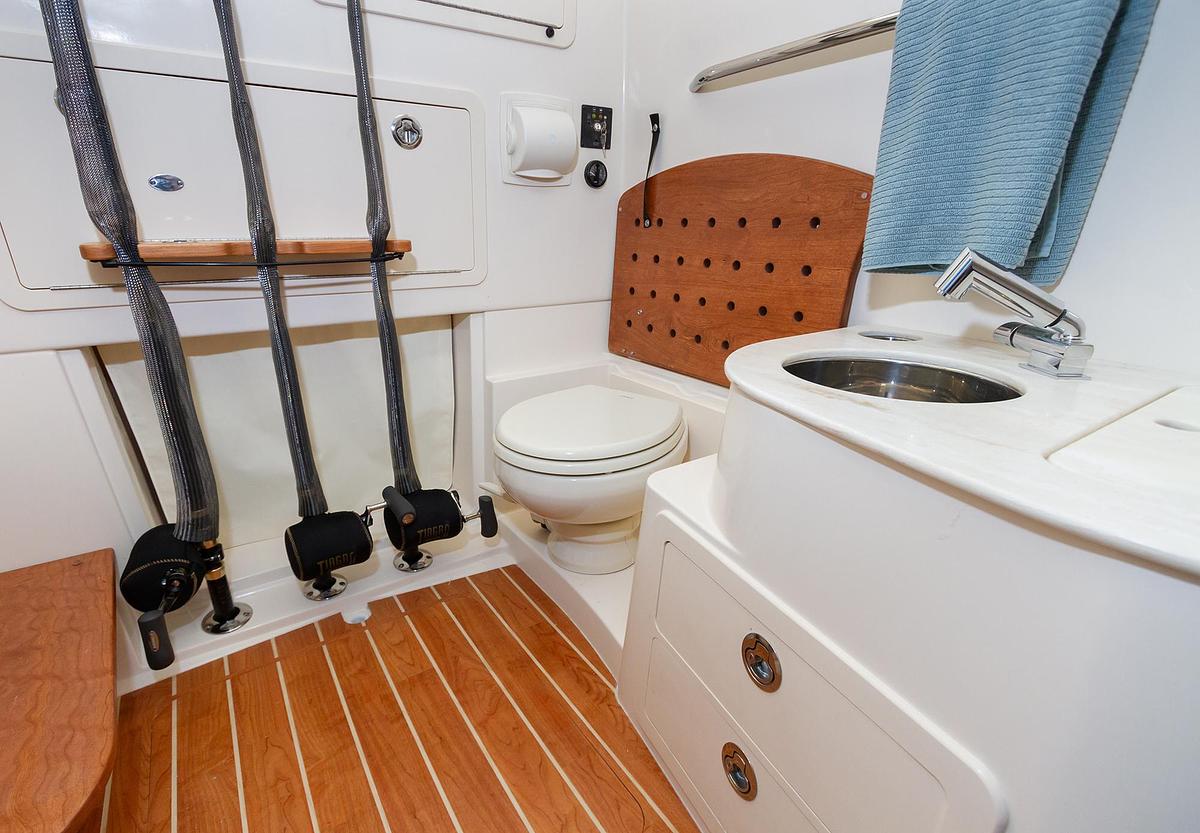

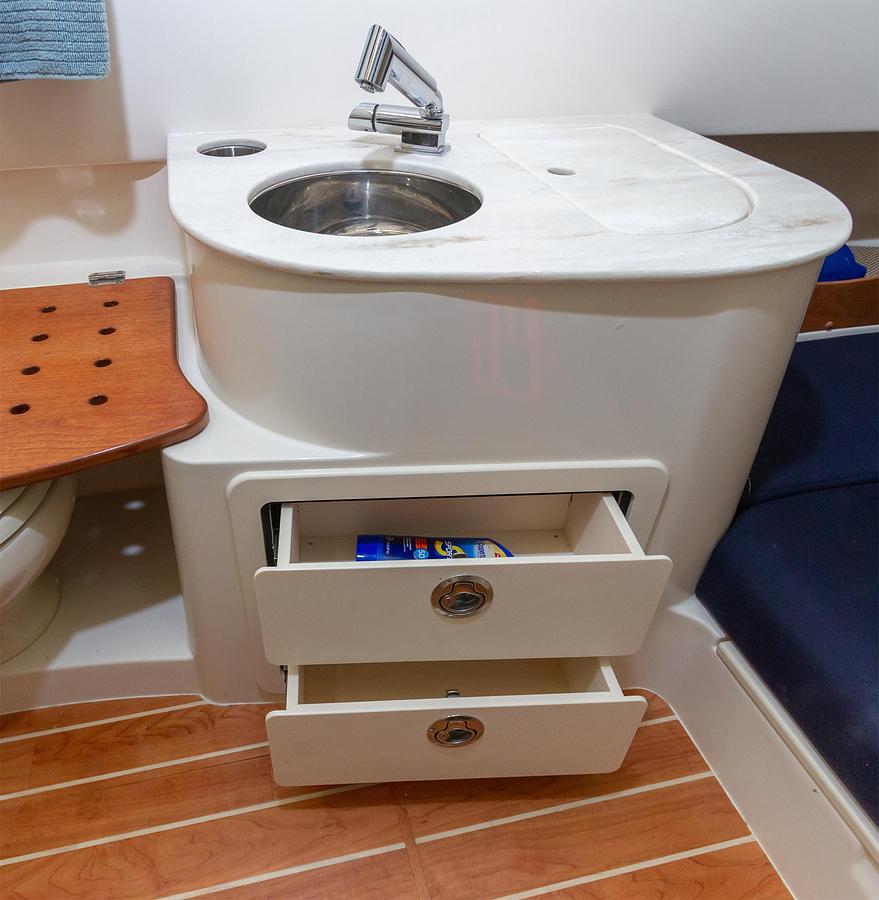

• Lockable console head w/ stand-up head area, shower, Corian® countertop w/ sink, drawers, fold-down seat & VacuFlush® head w/ freshwater supply, 10-gallon (38 L) holding tank, overboard discharge & deck pump-out
• Recessed lighting

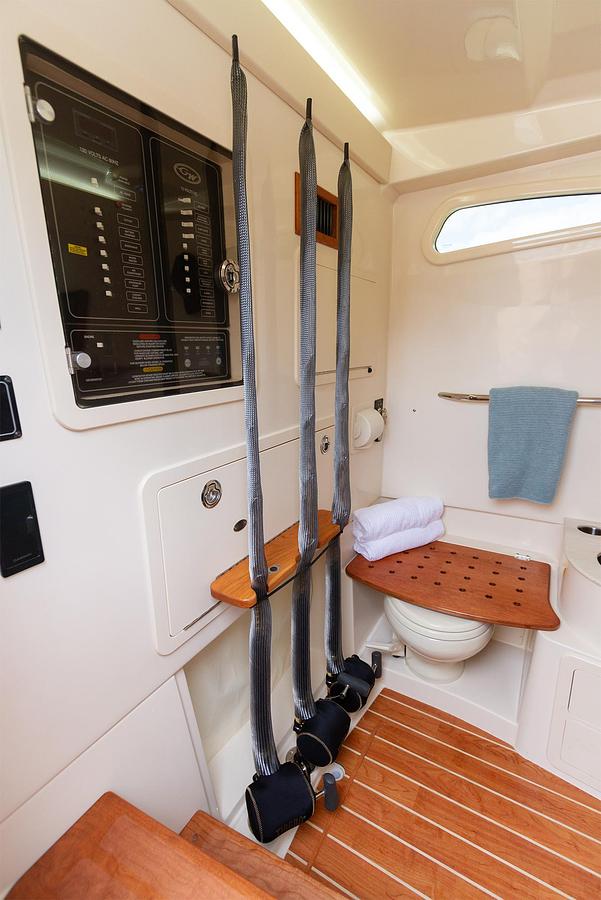

• Rod storage – vertical (6)
• Bulk storage aft; cabinet with door aft; storage pockets

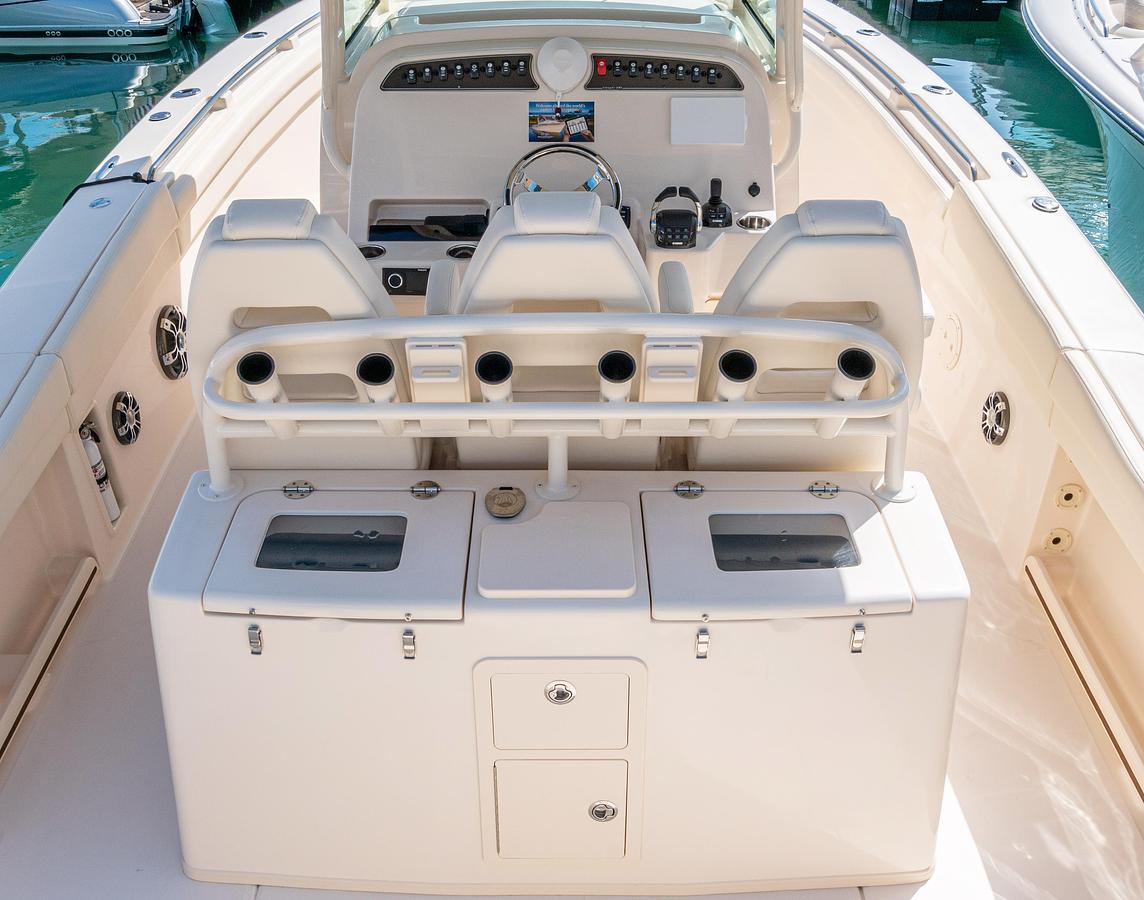

Deluxe Lean Bar

• Fold-down footrests (2)
• Knife & plier holders (2)
• Livewell – 45-gallon (170.3 L) insulated raw water livewell w/ light, full-column distribution inlet & ob drain (1100 GPH / 4164 LPH pump)
• Lean-bar rigging station w/ freshwater shower, 104-qt. (98.4 L) cooler & cutting board
• Rod holders (6)

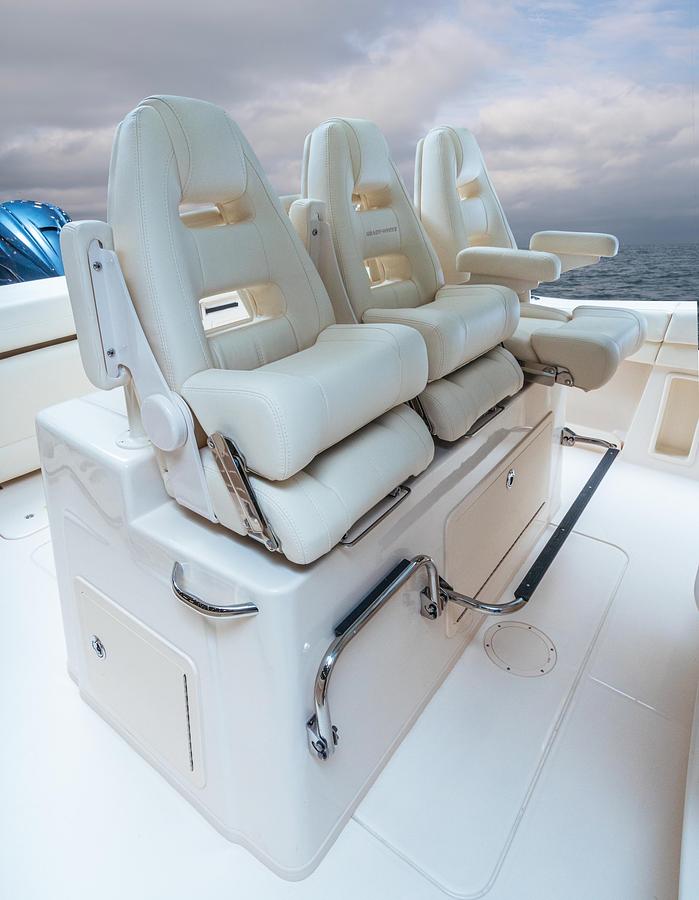

• Lean-bar mounted Command Elite helm chairs (3) – horizontally adjustable w/ deluxe cushioning & flip-up bolsters

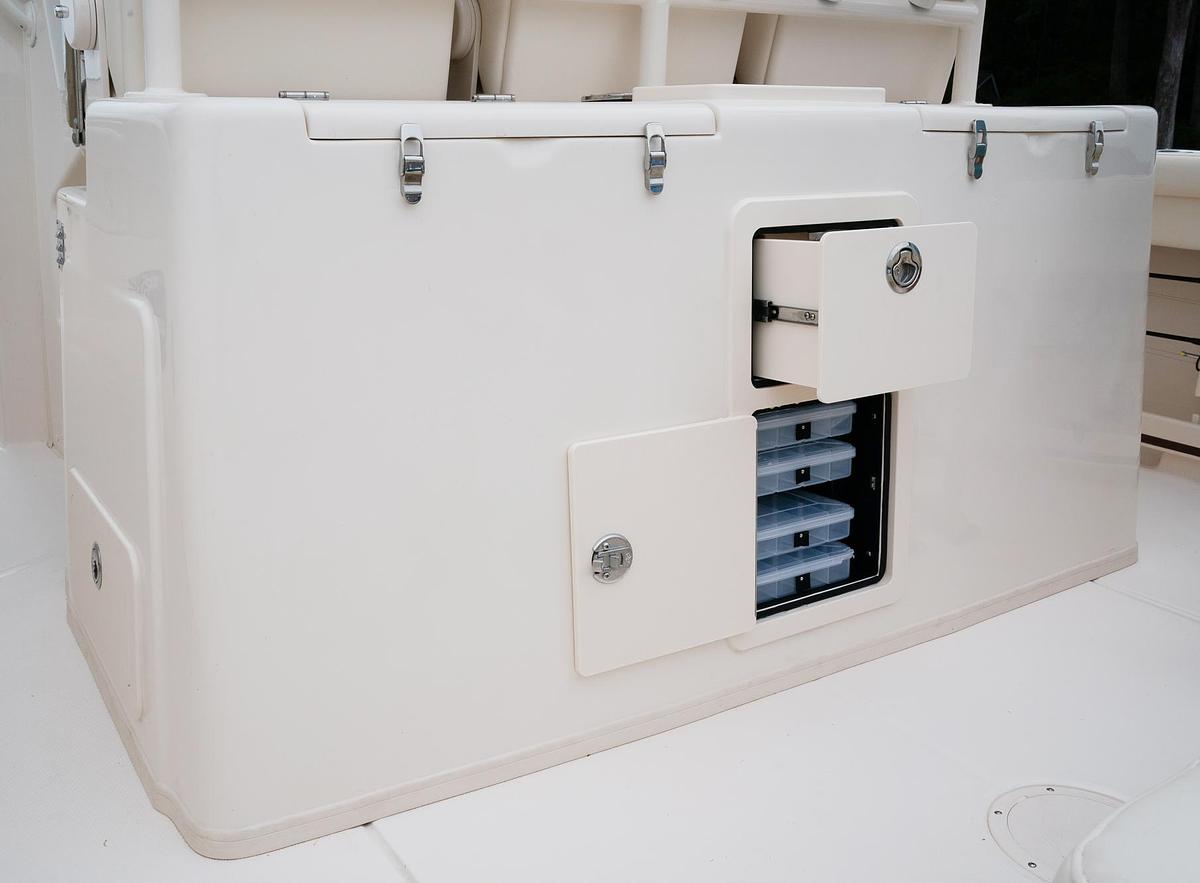

• Lockable storage drawers & tackle trays

OPTIONAL FEATURES

• Air conditioning – 6 000 BTU in console w/ 2 outlets at helm (requires generator)
• Bow thruster

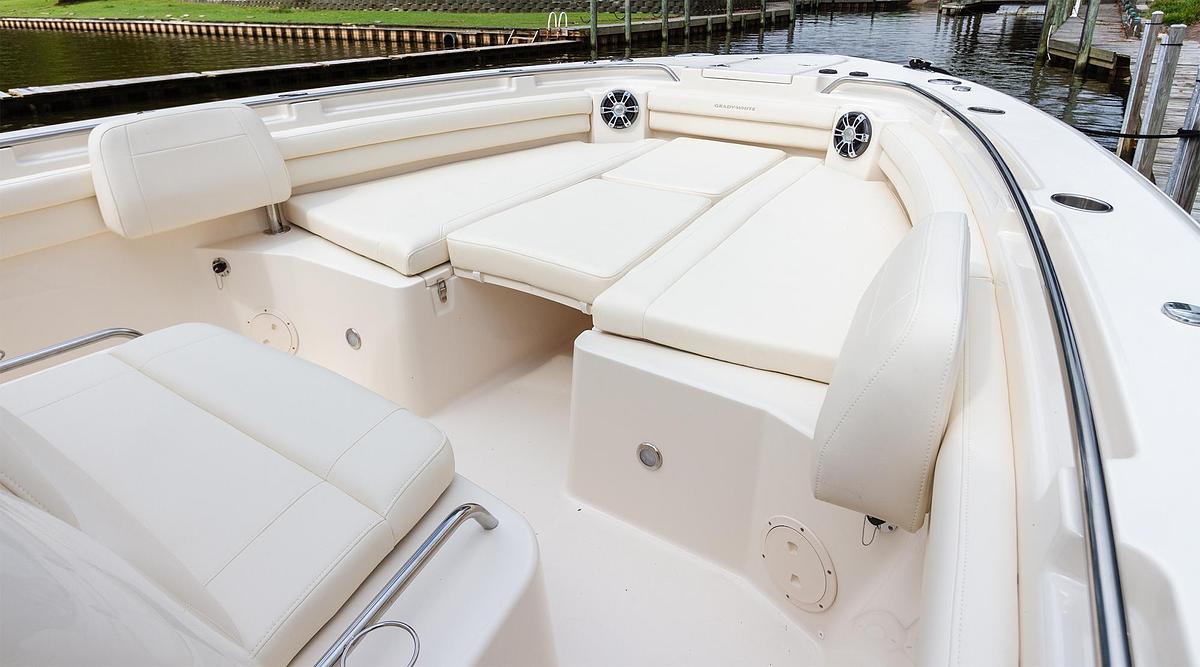

• Casting platform insert w/ cushion
• CE certification package (European Conformity)
• Cockpit step – starboard
• Freezer – aft refrigerator/freezer fish box w/ digital thermostat & ob drain (requires generator)
• Generator – 5 kW diesel, 12-gal. (45.4 L) fuel capacity
• Grill – 1300 W (requires generator; in lieu of lean-bar cooler)
• Hull gelcoat colors: Celestial Blue, Coastal Fog, Ocean Mist, Sea Glass
• International AC electrical conversion – 220 V (50 Hz)
• Underwater blue LED lighting (4)
• Livewell – 26-gal. (98.4 L) (replaces lean-bar cooler)
• Microwave – 120 V (60 Hz)
• Outrigger kit – 18-ft. crank T-top mounted stainless-steel outriggers w/ carbon-fiber poles
• Stabilizer – Seakeeper® 3 gyroscopic stabilization (requires generator)
• SureShade® integrated electrically retractable cockpit shade w/ Sunbrella® canvas (oyster)
• Fiberglass bow table (requires casting-platform insert)
• T-top underside matching gelcoat (requires matching hull color)
• Water heater – 6 gallon (22.7 L) w/ hot-water cockpit shower (requires generator)

Canvas Options

• Easy-up bow shade (ivory mesh)
• T-top side-wing curtains (ivory)

PERFORMANCE PACKAGES

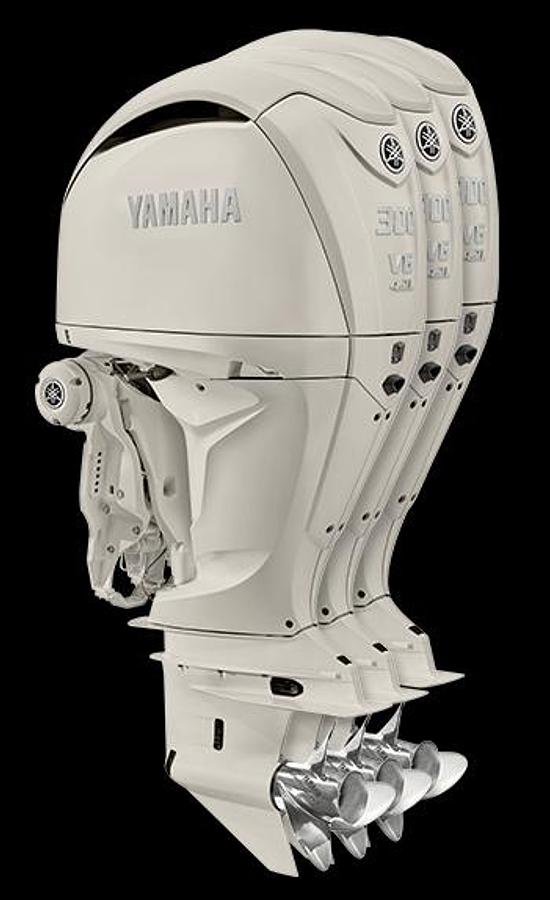

EngineConfigurationEngine SizeTest DateProp SizeWeight as TestedHardtopBow PulpitBottom PaintOptimum CruiseXTO Offshore® 450Twin5.6 L–16 5/8 × 19 XTO SDS14 928 lb. (incl. persons, fuel, water, gear…)YesNoNo30.3 MPH @ 3700 RPMYamaha Four-StrokeTriple4.2 L11/13/1515 1/4 × 19 SWS II SDS14 230 lb. (incl. persons, fuel, water, gear…)YesNoNo29.4 MPH @ 3300 RPMYamaha Four-StrokeTriple4.3 L05/15/2415 × 20 SWS II SDS14 964 lb. (incl. persons, fuel, water, gear…)YesNoNo31.5 MPH @ 3400 RPM

PERFORMANCE DISCLAIMERS

Performance can vary based on wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement, prop size/condition/type. Use this report as a general reference. Props listed reflect those factory-installed on new boats at time of test; specs may be updated.
