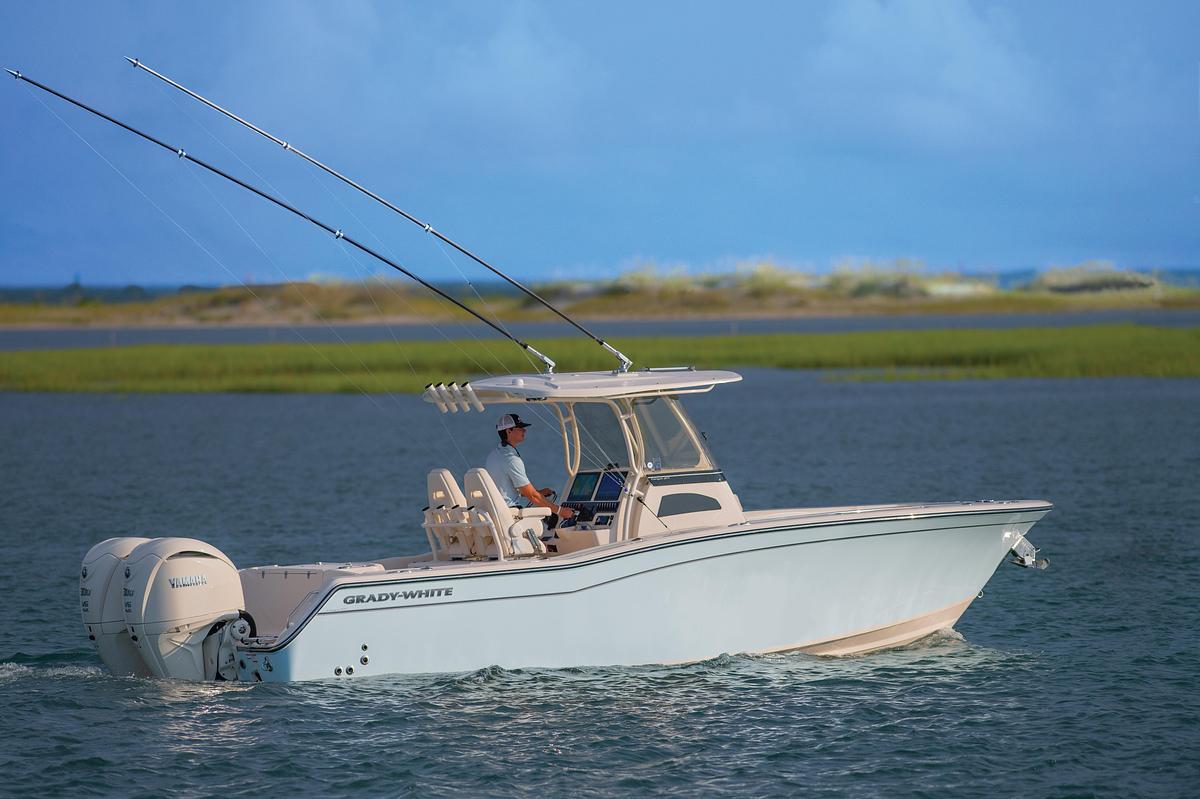

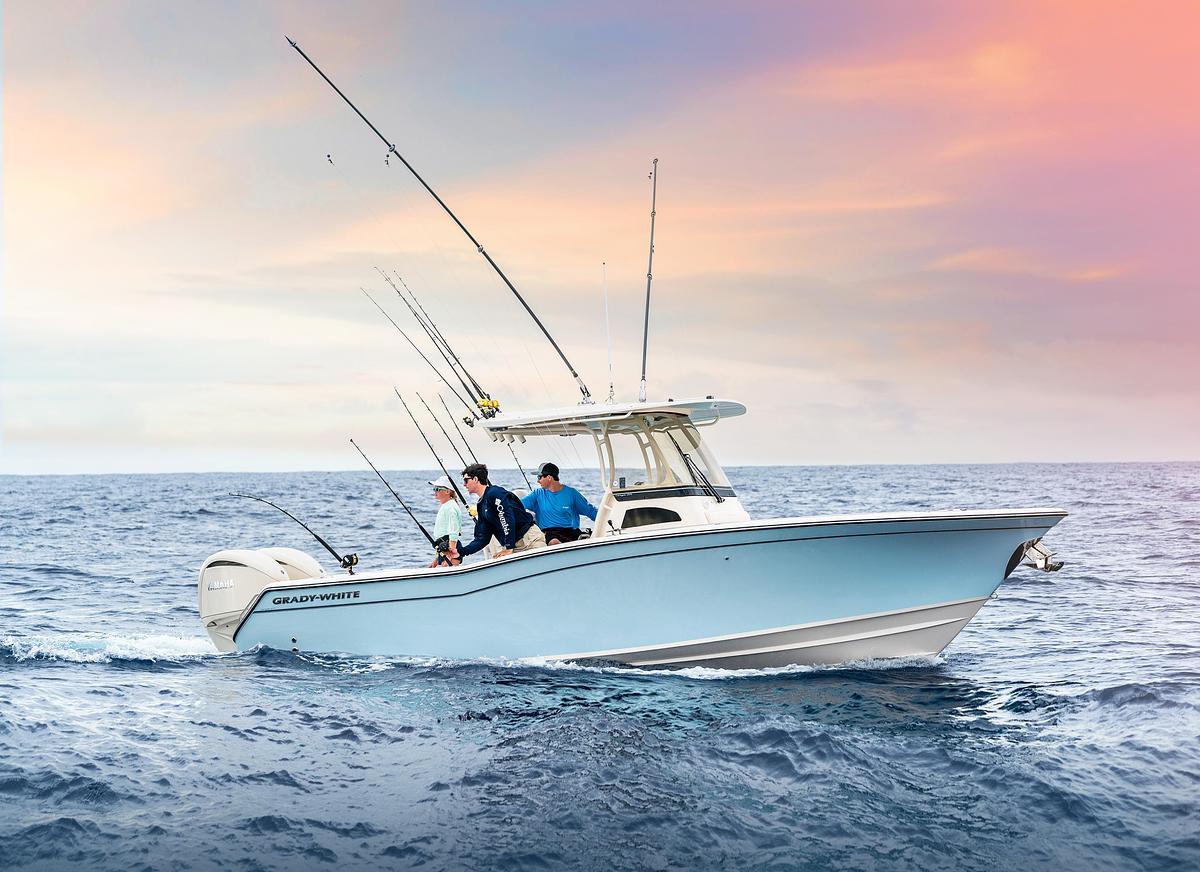

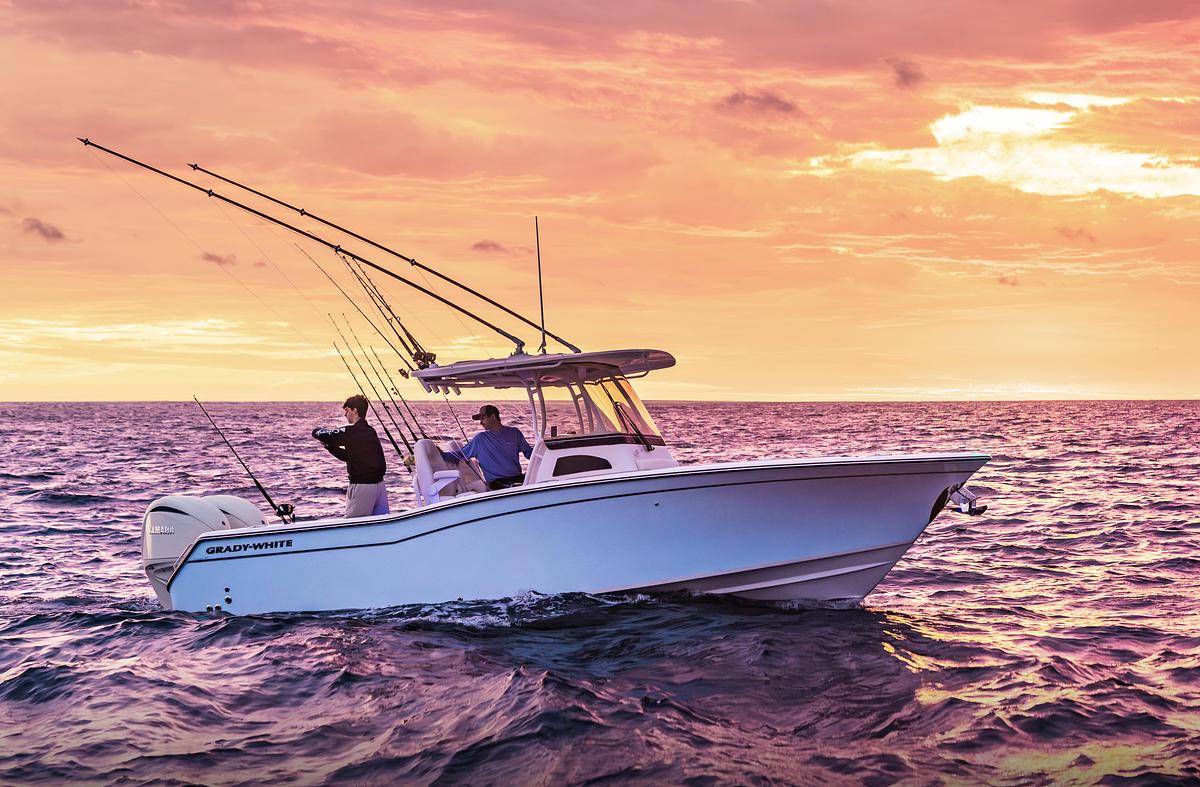

Canyon 271 27' CENTER CONSOLE

Grady-White took the center console concept to the next level with the Canyon 271! At 27 feet, this is one of the best offshore fishing boats that delivers big boat features. It starts with the new port side cockpit door and moves on to include a deluxe lean bar that incorporates four rod holders, a rigging station, tackle storage, and a 42-gallon raw water livewell. This boat is fishing ready. All built on Grady’s exceptional riding exclusive SeaV²® hull, the 271 assures the driest ride of any boat on the market. Hit the fishing grounds in comfort and style, then enjoy a sunset cruise on this family-friendly center console boat.

STANDARD FEATURES

Safety

2 automatic bilge pumps (total 2600 GPH) (9842 LPH)

Basic flotation

Bow grab rail - low profile 316 grade stainless steel

Cockpit toe rails

Composite stringer system & transom - water impervious

Nonskid fiberglass liner

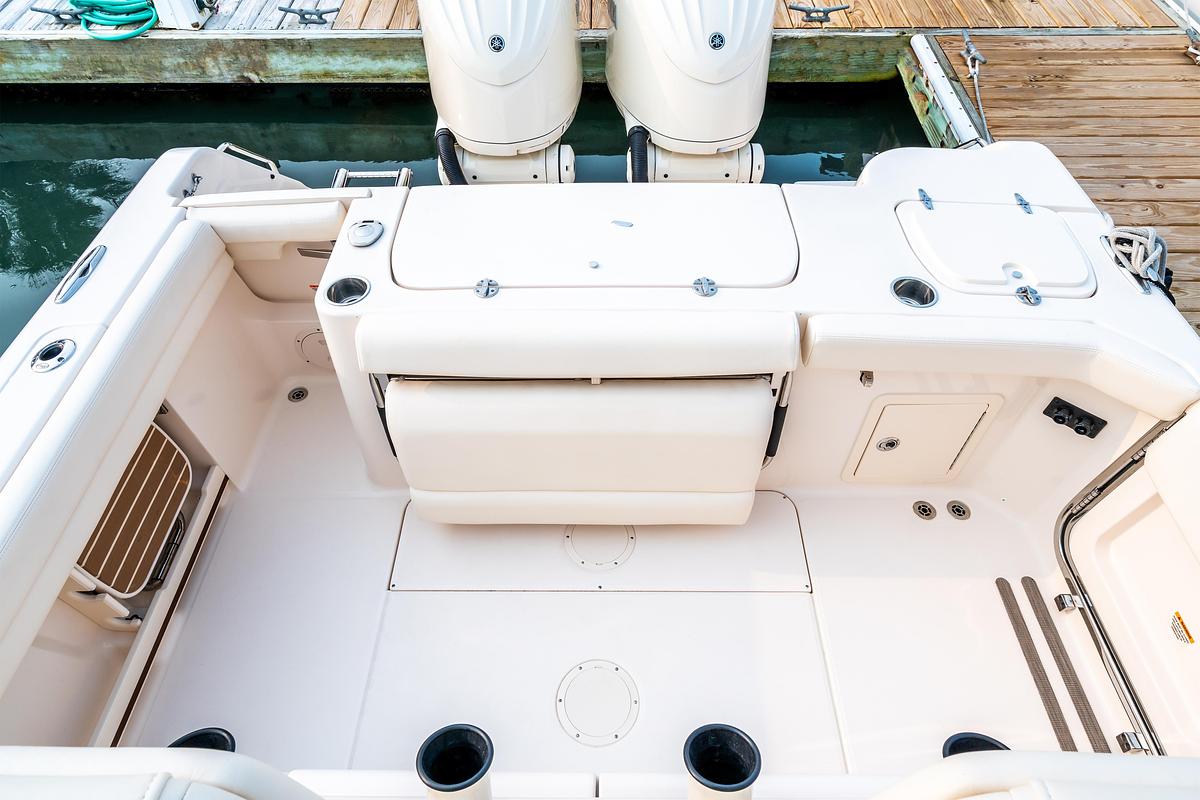

Self-bailing cockpit w/cockpit drains (4)

Stainless steel through-hull fittings

Cockpit & Deck

100% hand laid SeaV² hull & deck

Anchor windlass w/rode, line, and remote switches at helm & windlass

Batteries (2) w/battery select switches (one per engine)

Cleats - flush mount (pull up)

Cockpit bolsters

Cockpit freshwater shower (recessed)

Cockpit lights - blue LED

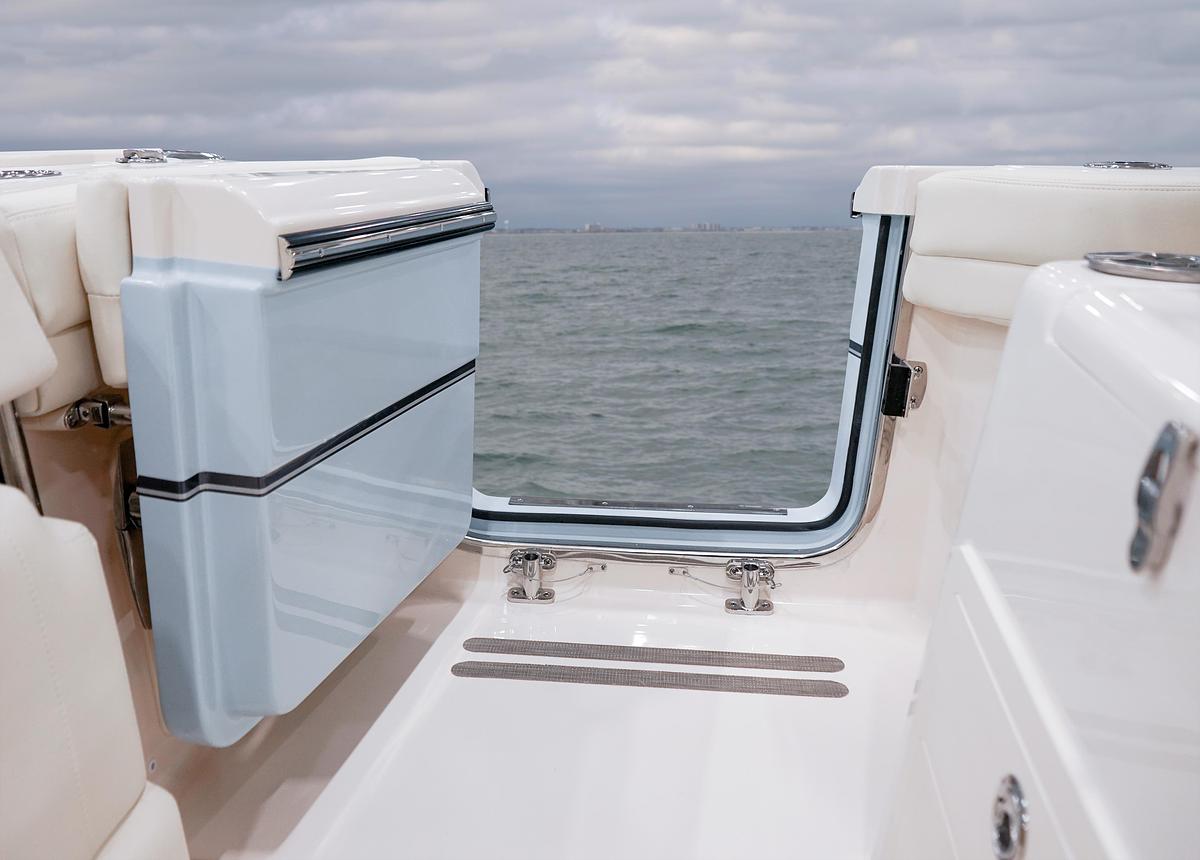

Cockpit side door – port w/boarding ladder

Convenience package - battery charger (1) & dockside power w/galvanic isolator

Cutting board

Deck hardware - 316 grade stainless steel through-bolted

Drink holders - stainless steel (8)

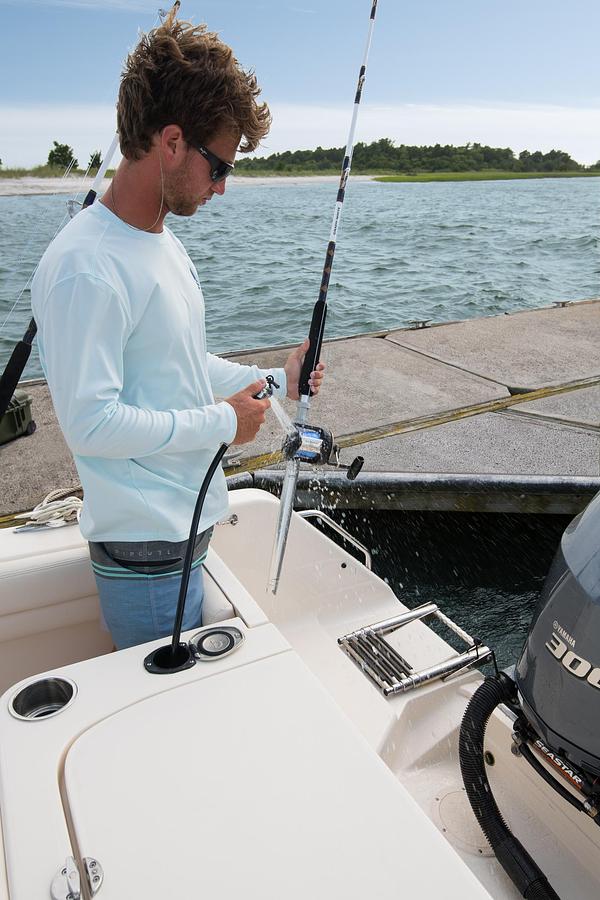

Engine flush system w/hose attachment aft (one per engine)

Fish box - 198 qt. (218 l) aft insulated fish box w/light & ob drain

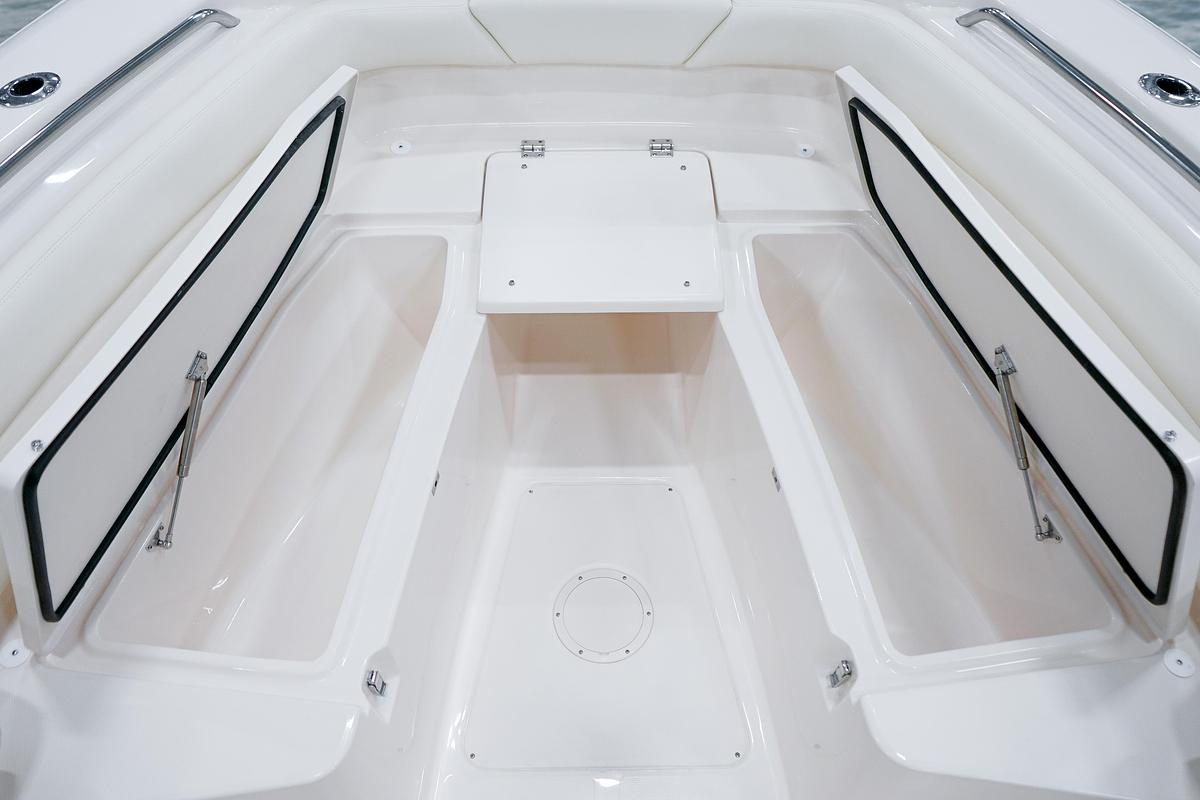

Fish box - 85-qt. (80 l) forward port & starboard insulated fish box w/ob drain (2)

Forward bolsters

Hydraulic trim tabs w/indicator & retractor

Integrated outboard mounting system w/swim platform & ladder

International lighting

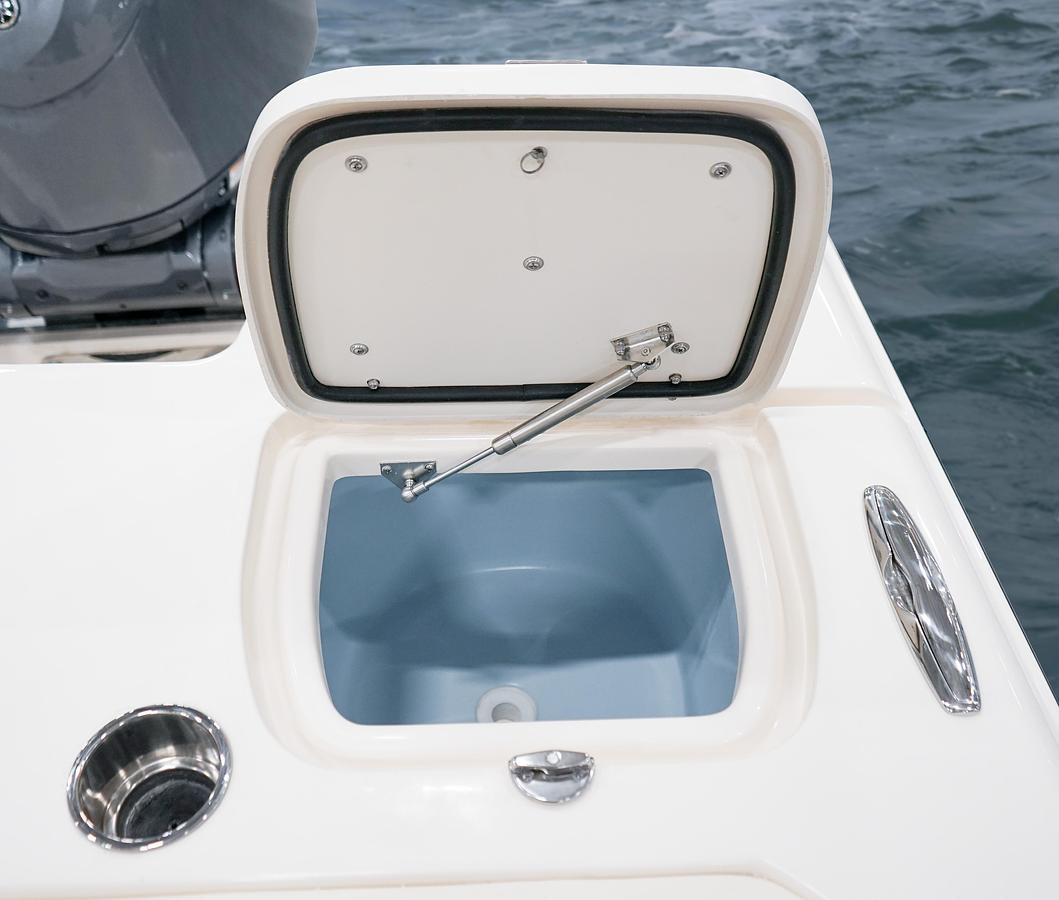

Livewell - 32-gallon (121 l) aft insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

Rod holders - bow (2), cockpit (6)

Rod storage - lockable horizontal (6)

Rod storage racks - horizontal (3)

Rubrail - high density PVC w/stainless steel insert

Seating - foldaway aft bench seat w/cushion

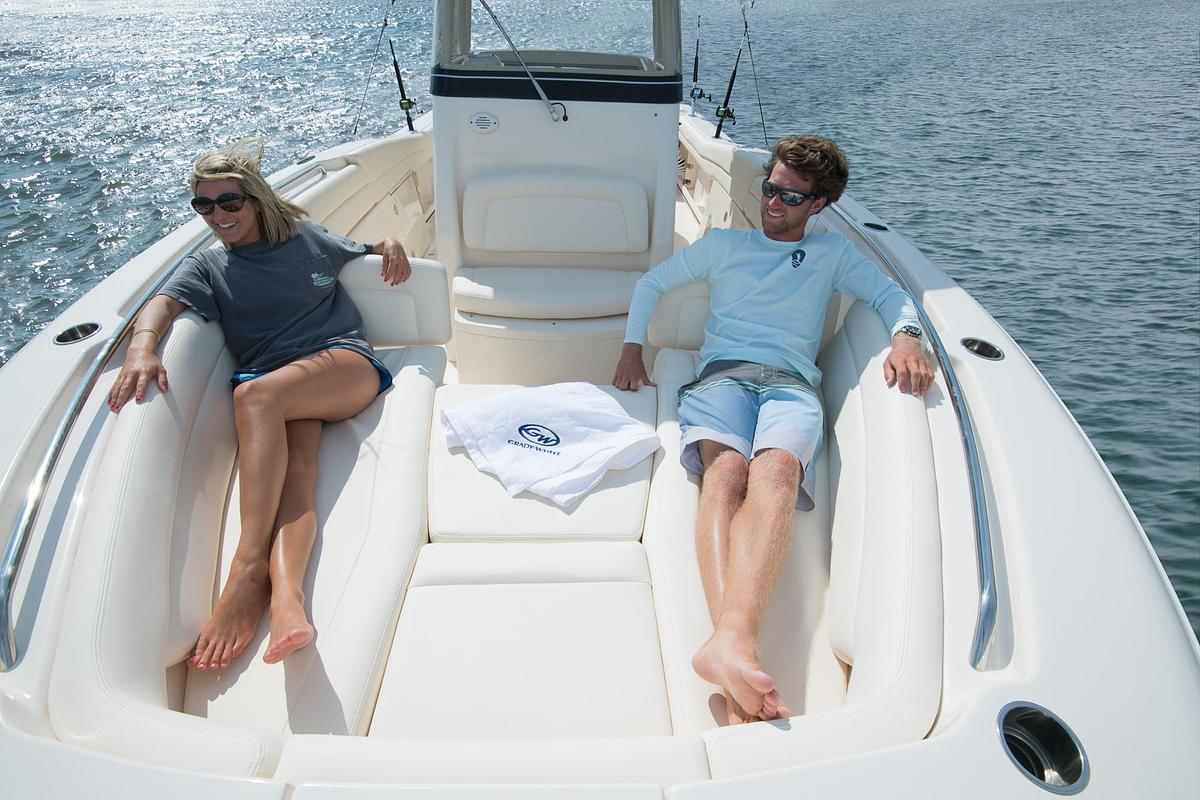

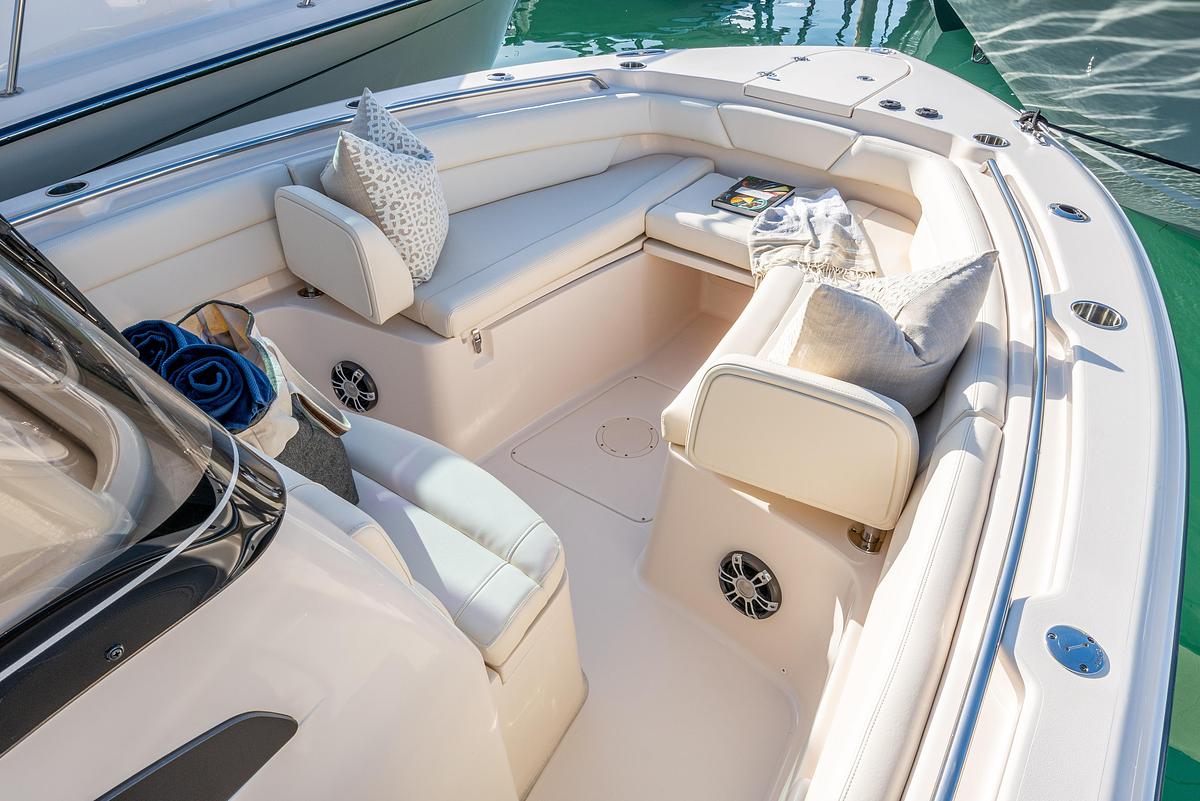

Seating - port & starboard bow seating w/forward facing foldaway bolstered backrest (2)

Stereo system w/waterproof touch screen display, AM/FM tuner & Wi-Fi & Bluetooth connectivity; speakers w/LED lights - bow (2), T-top (2), cockpit (2)

Stern eyes - 316 grade stainless steel

Storage - forward anchor locker w/rode storage

Transom door - fiberglass

Washdown - pressurized raw water w/hose (forward)

Water tank - 18-gallon (68 l) freshwater

Console

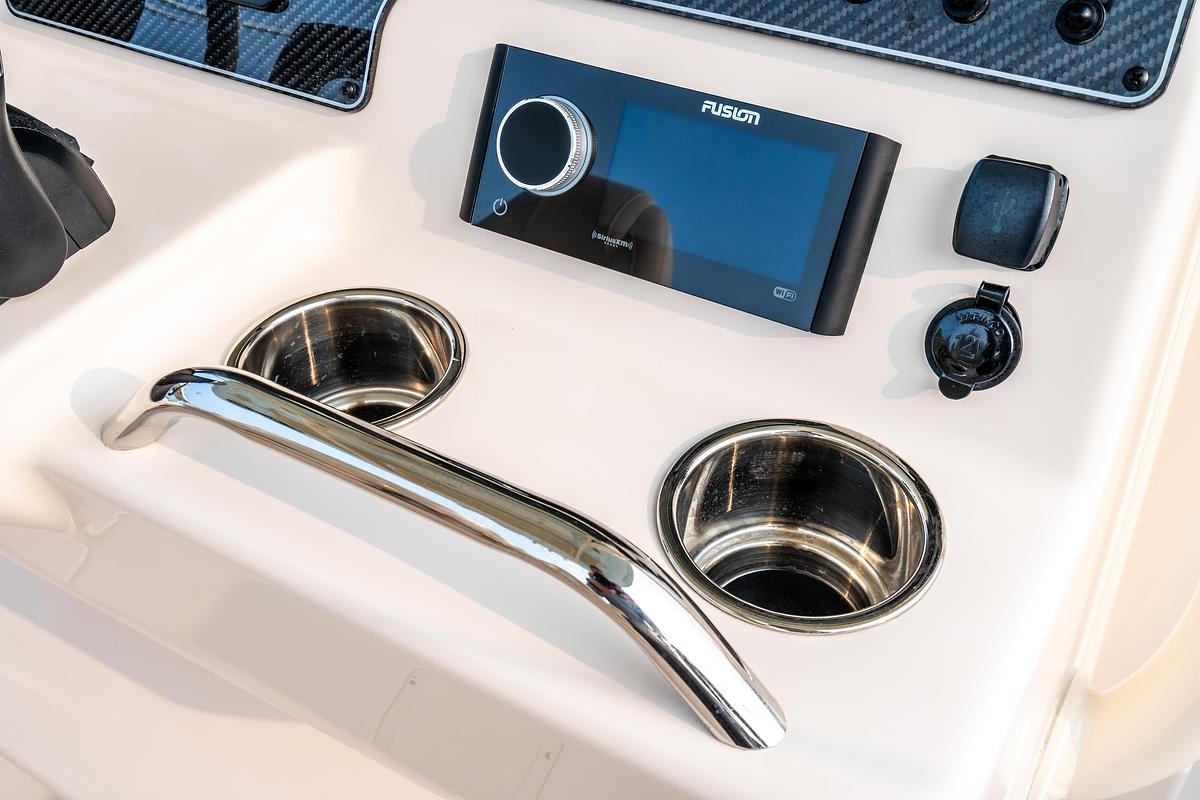

Accessory outlet - 5V duplex USB port

Accessory outlet - 12V

Compass

Console grab rail

Console ventilator

Cooler - 67-qt. (63 l) cooler under forward console seat

Drink holders - stainless steel (2)

Factory engine pre-rigging

Flush mount electronics area

Footrest - molded console footrest

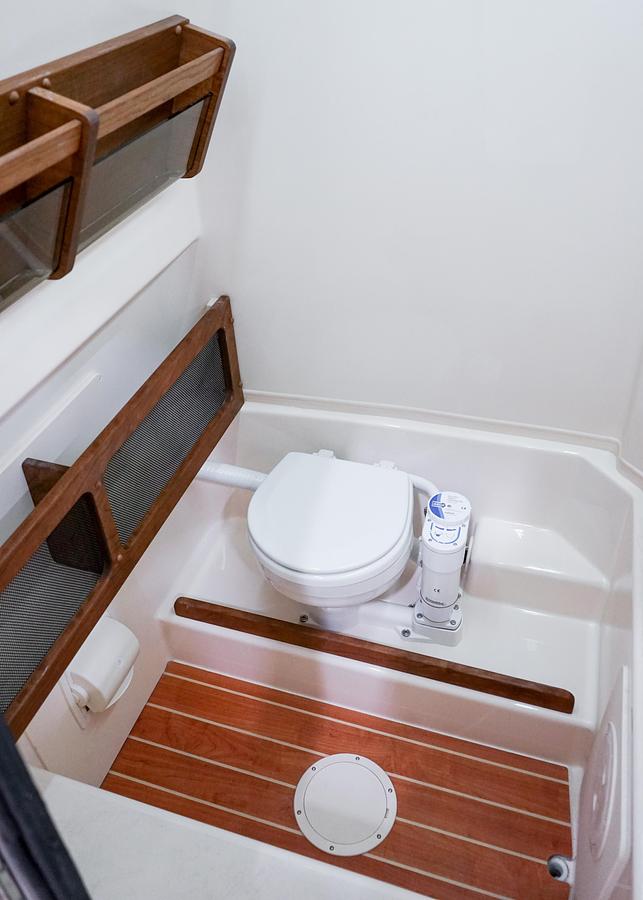

Head - lockable console w/lighting, bulk storage, composite cherry & holly sole & marine head w/electric flush, 7.5-gallon (28 l) holding tank w/macerator, overboard discharge & deck pump out

Seating - molded forward console seat w/cushion

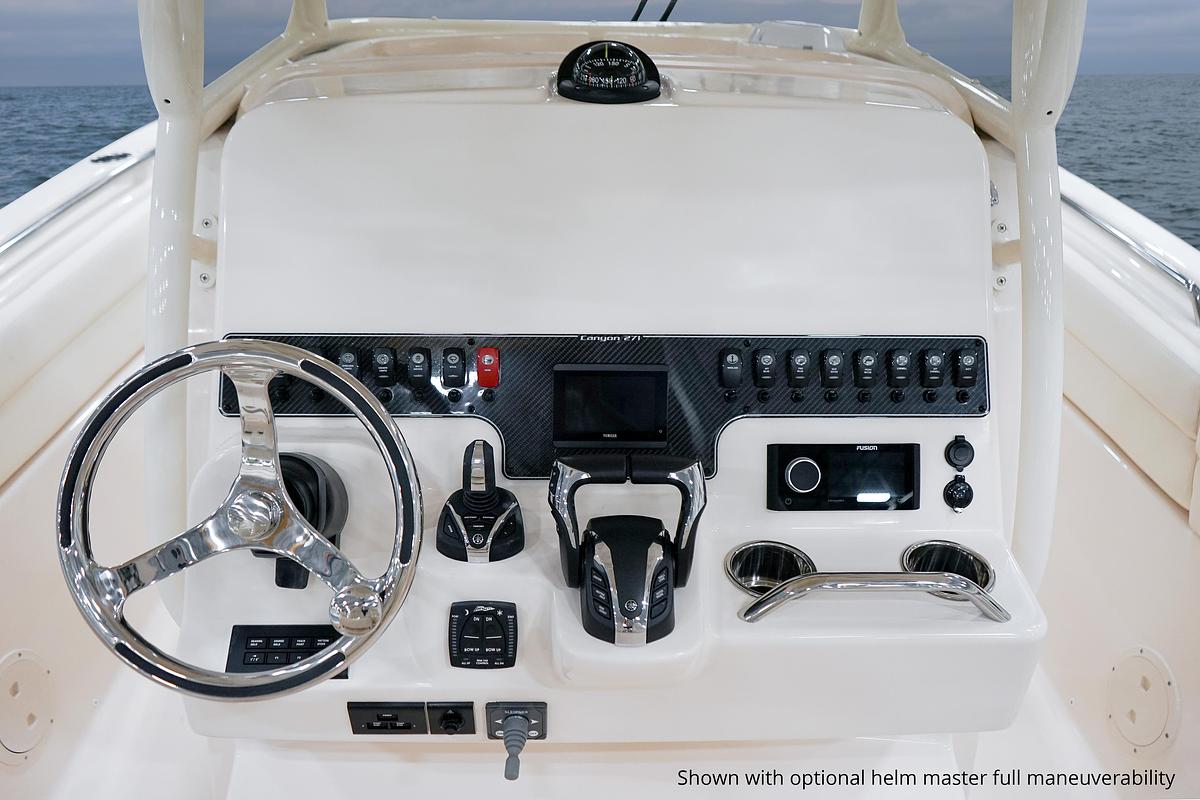

Steering - Helm Master® EX w/Integrated Digital Electric Steering (does not include joystick)

Steering wheel - 316 grade stainless steel w/knob

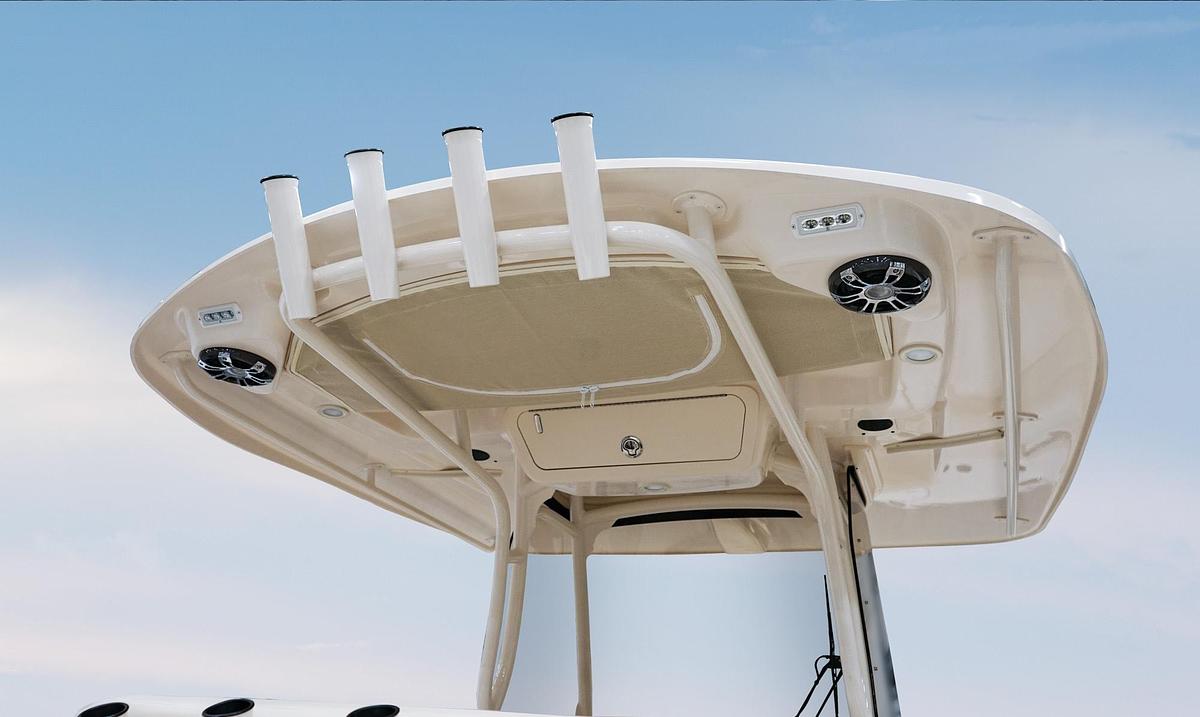

T-top - fiberglass w/painted aluminum frame, storage net, LED spreader lights, rod holders (4), tri-colored (red, blue, white) LED recessed lights (4), radar flat & outrigger plates

Window - tinted frameless acrylic

Windshield - scratch resistant acrylic integrated w/T-top

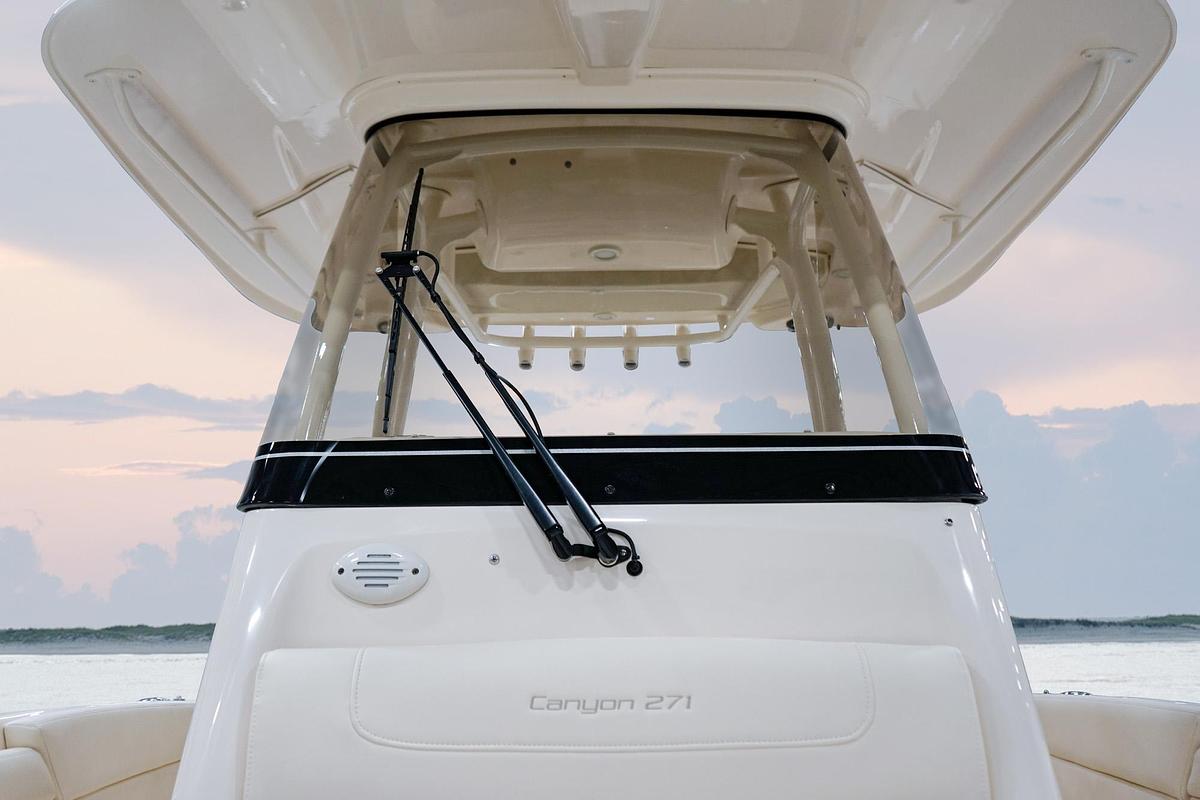

Windshield wiper w/washer

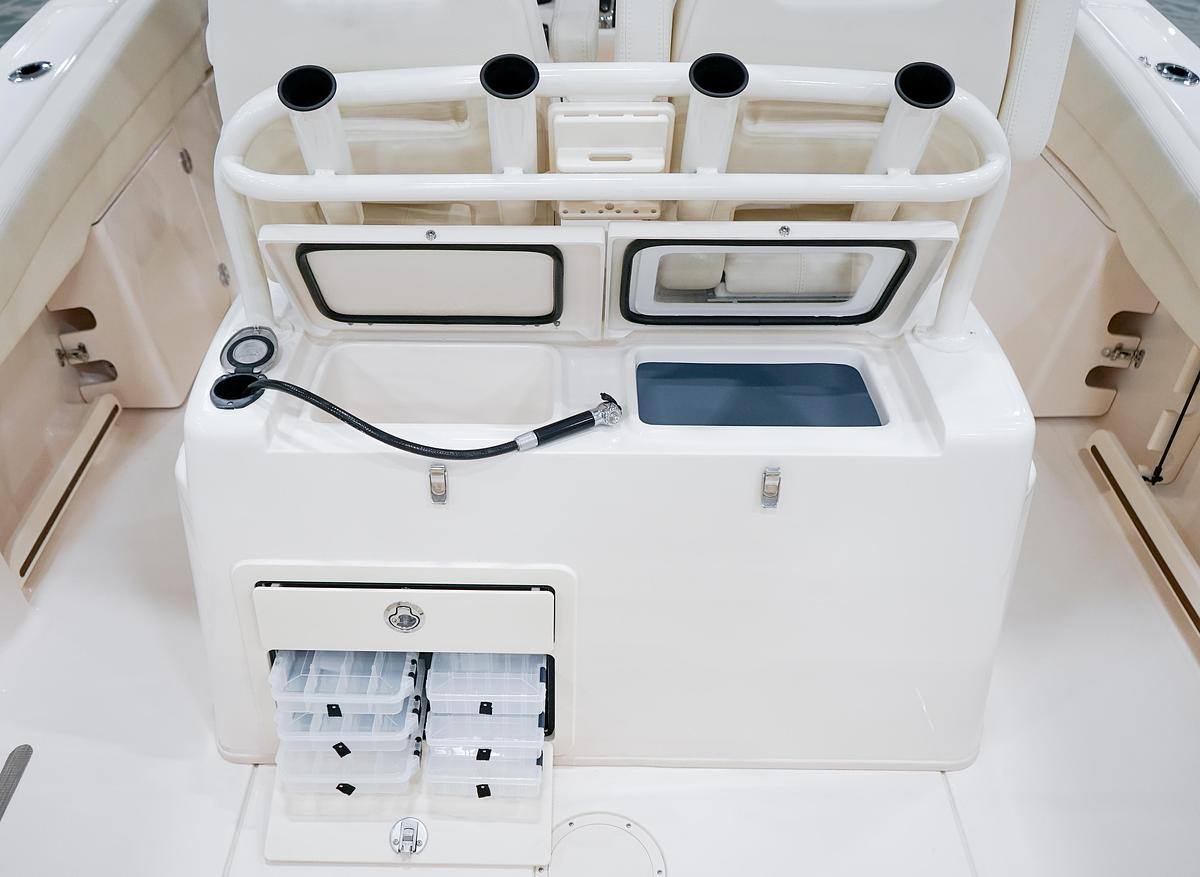

Elite Lean Bar

Knife & plier holders

Livewell - 38-gallon (144 l) insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

Painted rod holders (4)

Rigging station - freshwater shower (recessed), bait locker & cutting board

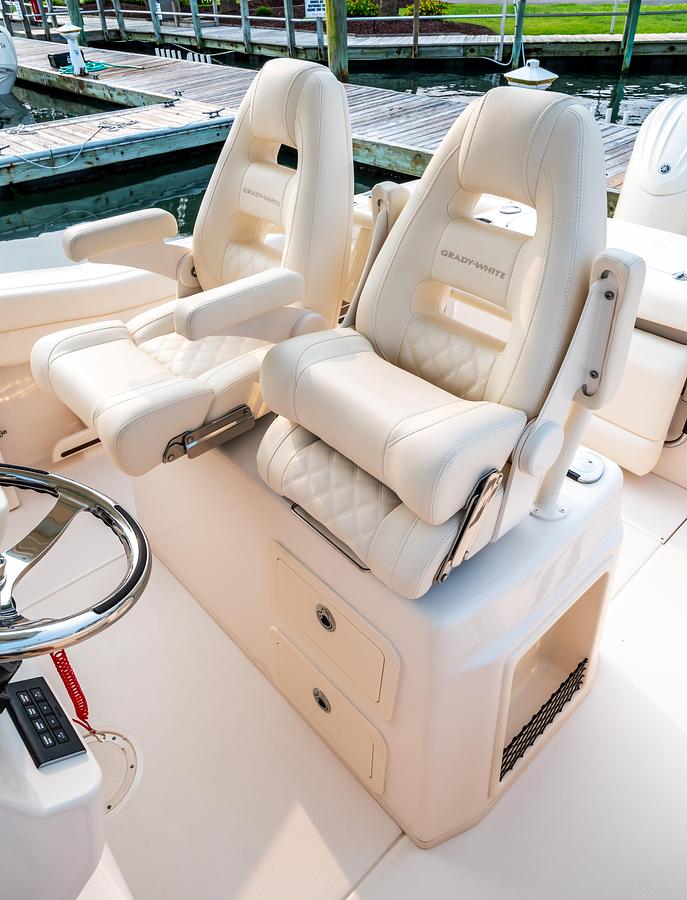

Seating - Command Elite helm chairs (2)

Storage - lockable storage drawers (3)

Storage - lockable w/tackle trays

Storage - port net storage area

Washdown - pressurized raw water w/hose

OPTIONAL FEATURES

Options

Bow thruster

Casting platform insert w/cushion

CE certification package (European Conformity)

Cockpit step - starboard

Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat

Lighting - underwater blue LED (3)

Outrigger kit - 18-ft. (5.5 m) crank T-top mounted stainless steel outriggers w/carbon fiber poles

Steering - Helm Master® EX w/Full Maneuverability

SureShade® electrically retractable cockpit shade w/Sunbrella® canvas (oyster)

Table - fiberglass bow table (requires casting platform insert)

T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)

Canvas Options

Easy up bow shade (ivory mesh)

T-top wing curtains (ivory)

Canyon 271

300 Yamaha Four-Stroke

Twin

Engine Size: 4.2L

Test Date: 6/1/2011

Prop Size: 15 1/4 x 19 SWSII SDS

Weight as Tested: 8638 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop: Yes

Bow Pulpit: No

Bottom Paint: No

Optimum Cruise: 30.0 MPH @ 3300 RPM

PERFORMANCE DISCLAIMERS

The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.
