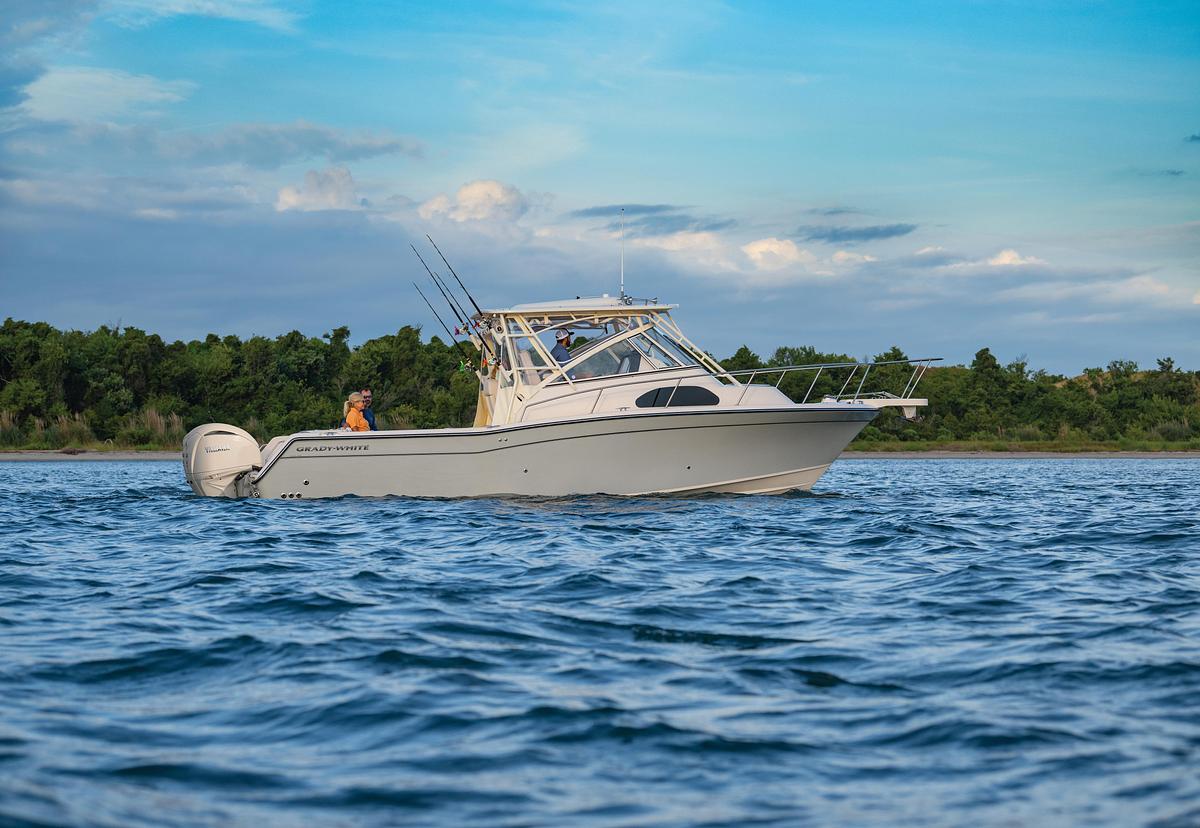

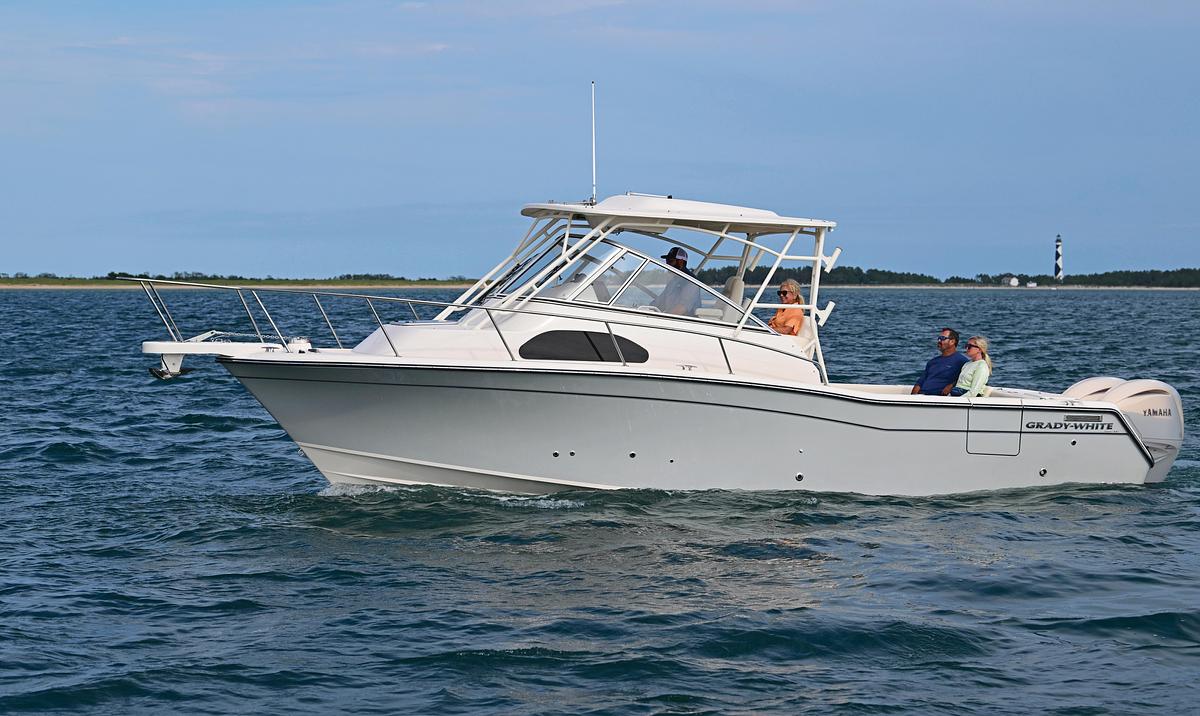

Marlin 300 30' WALKAROUND CABIN

Grady-White’s Marlin 300, the first model built on the exclusive SeaV²® hull, offers amazing performance and true offshore saltwater fishing boat capability. Since that first design over three decades ago, the Marlin 300 has been refined through customer input and Grady’s acclaimed exceptional attention to detail. From the high windshield with ventilated tempered glass to the plush seating and luxurious cabin, this is a much-loved, legendary 30-foot walkaround fishing boat with abundant family-friendly details.

STANDARD FEATURES

Safety

2 automatic bilge pumps (total 2600 GPH) (9842 LPH)

Basic flotation

Bow rail - 316 grade stainless steel

Cockpit toe rails

Composite stringer system & transom - water impervious

Nonskid fiberglass liner

Nonskid recessed walkaround

Self-bailing cockpit w/cockpit drains (4)

Stainless steel through-hull fittings

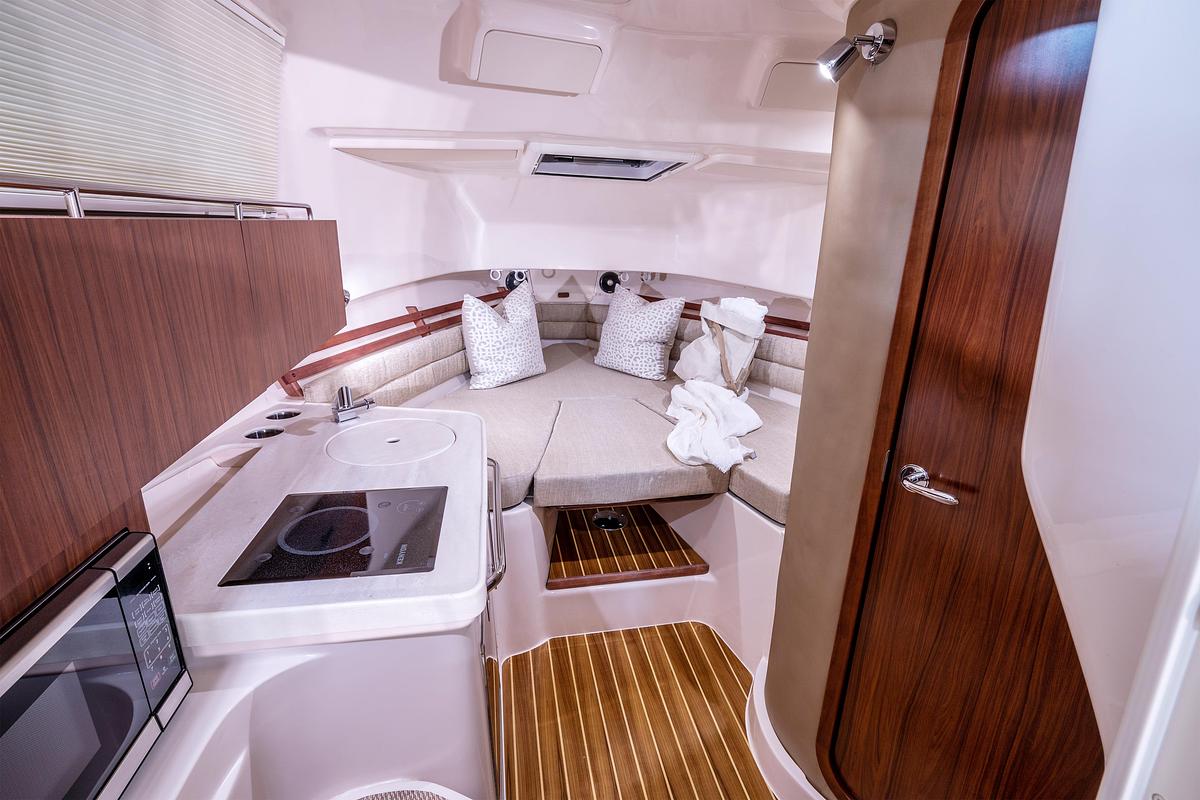

Cabin

Accessory outlet - 5V duplex USB port

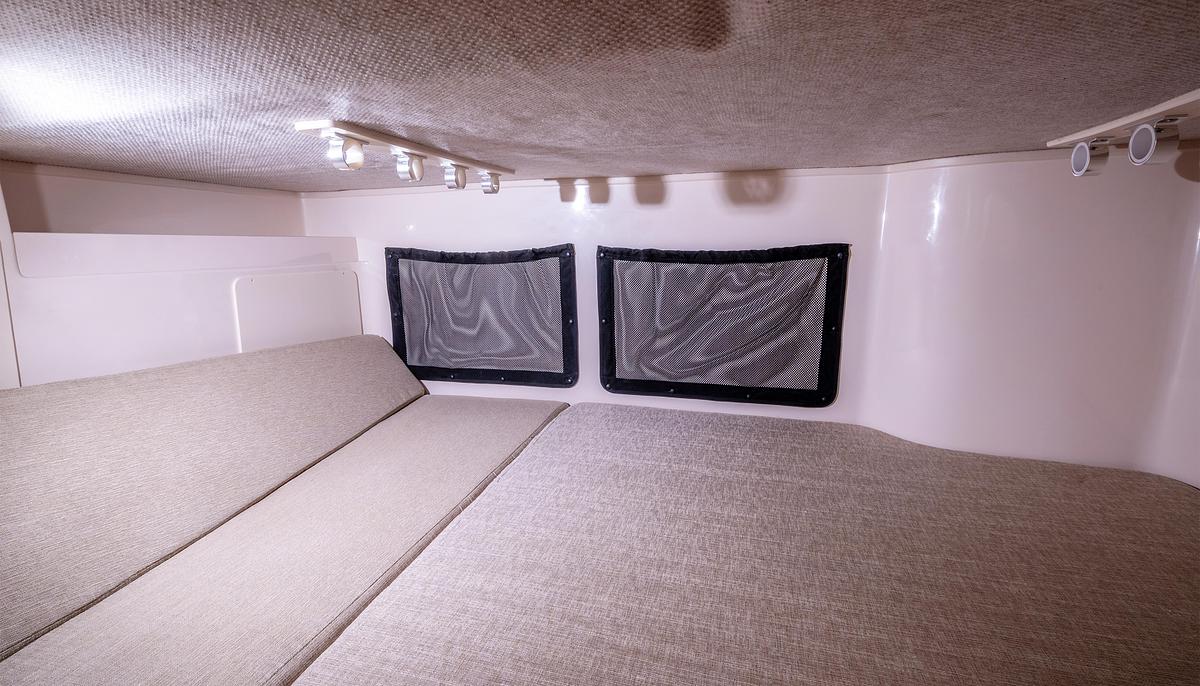

Berth - aft double berth

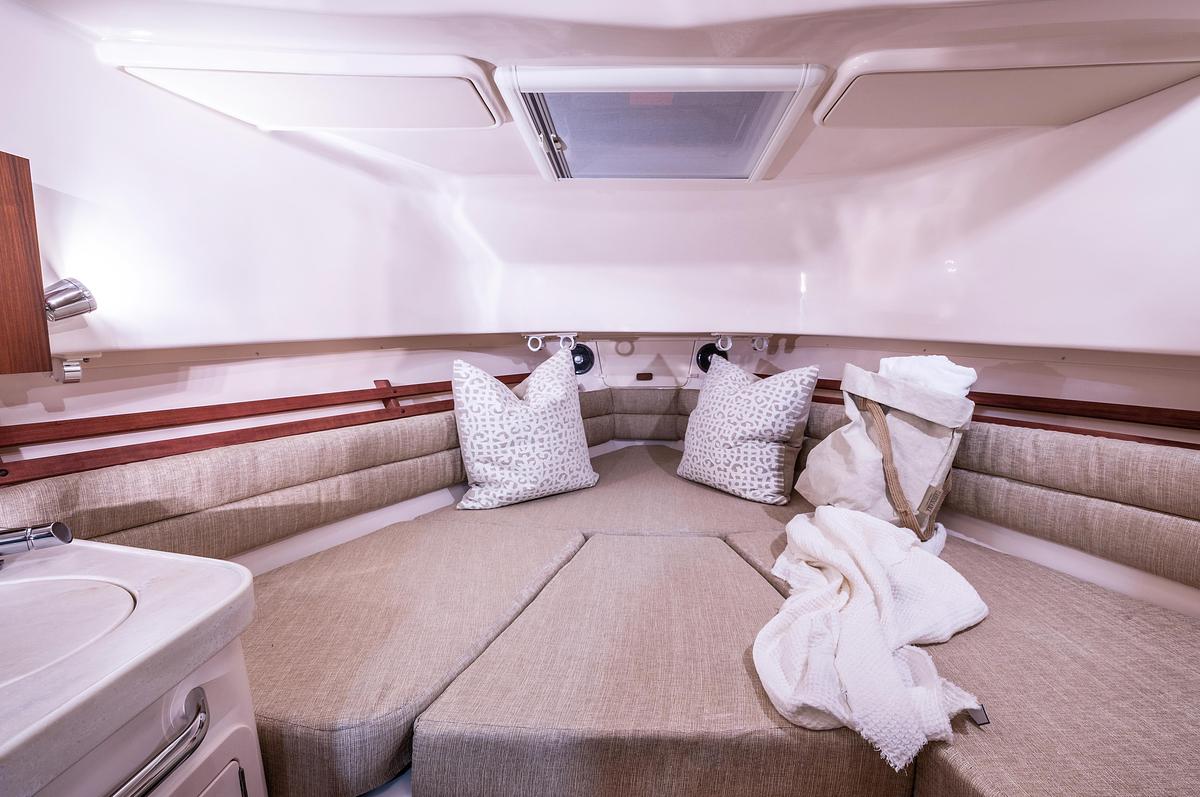

Berth - forward vee berth

Carbon monoxide detector

Door - lockable w/screen & companionway hatch

Forward hatch - low profile acrylic hatch w/screen & shade

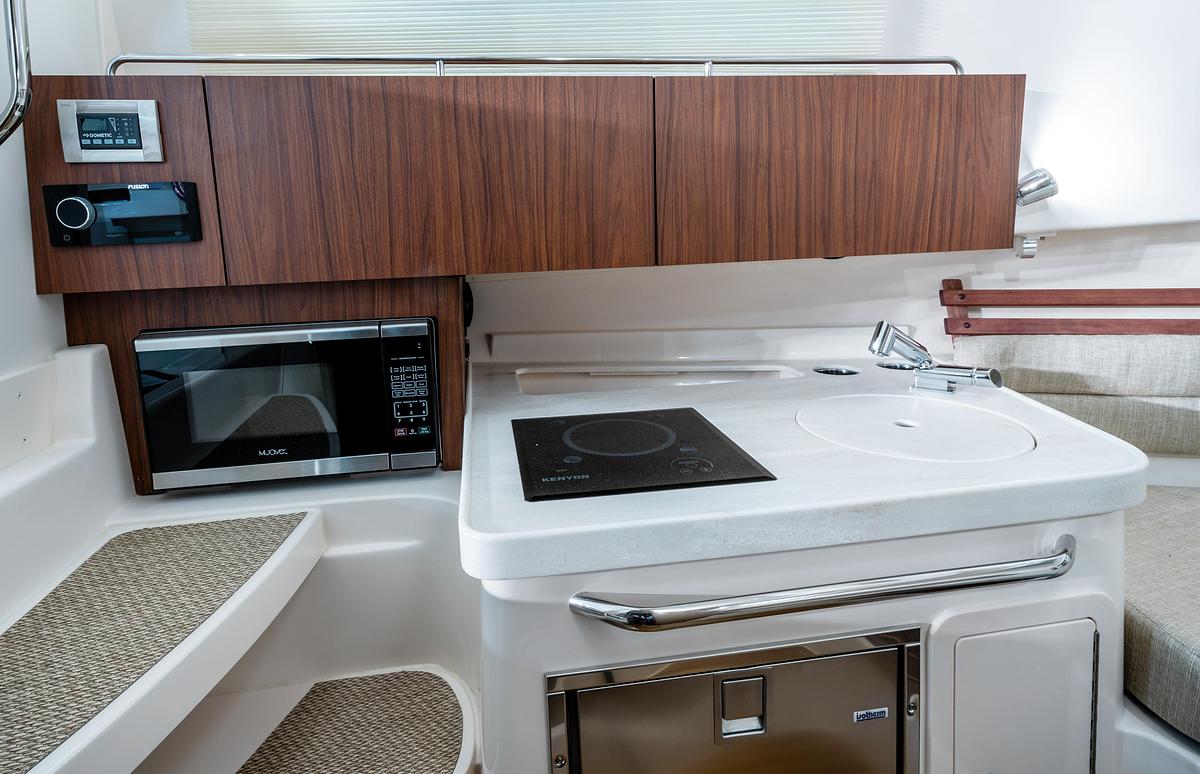

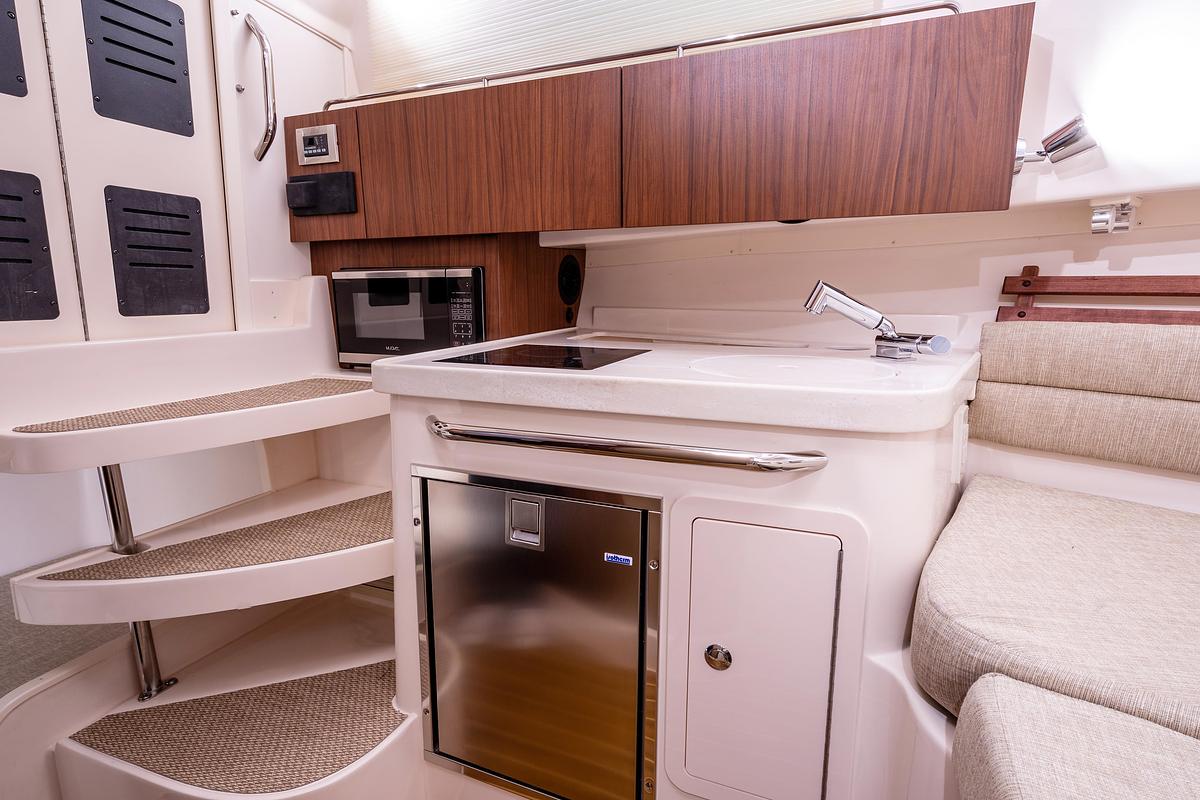

Galley - port galley w/sink, light & Corian cutting board

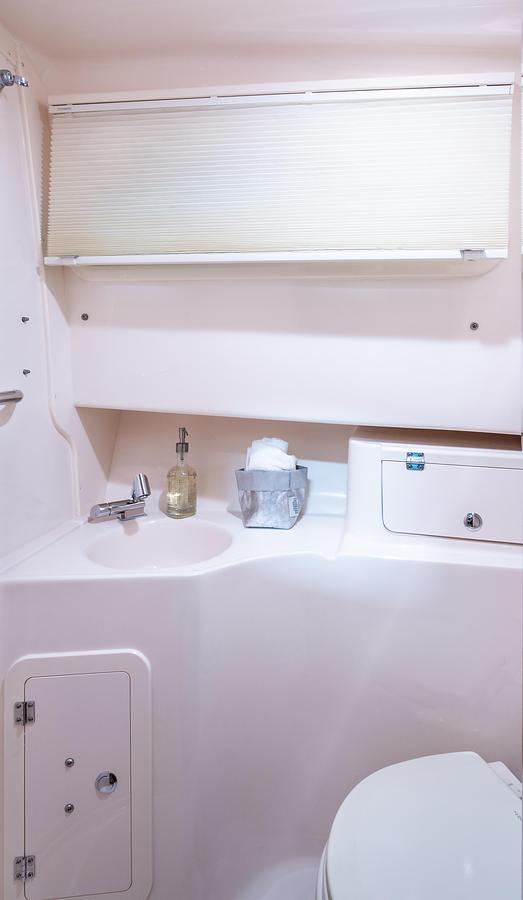

Head - enclosed head area w/sink, shower, lamp & VacuFlush marine head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out

Lighting - dome (2)

Lighting - reading (3)

Microwave oven

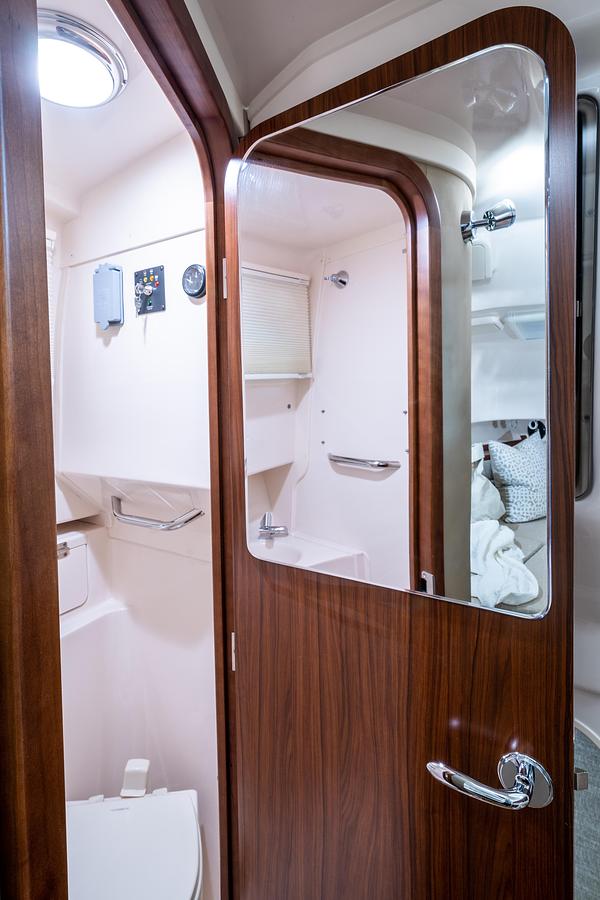

Mirror

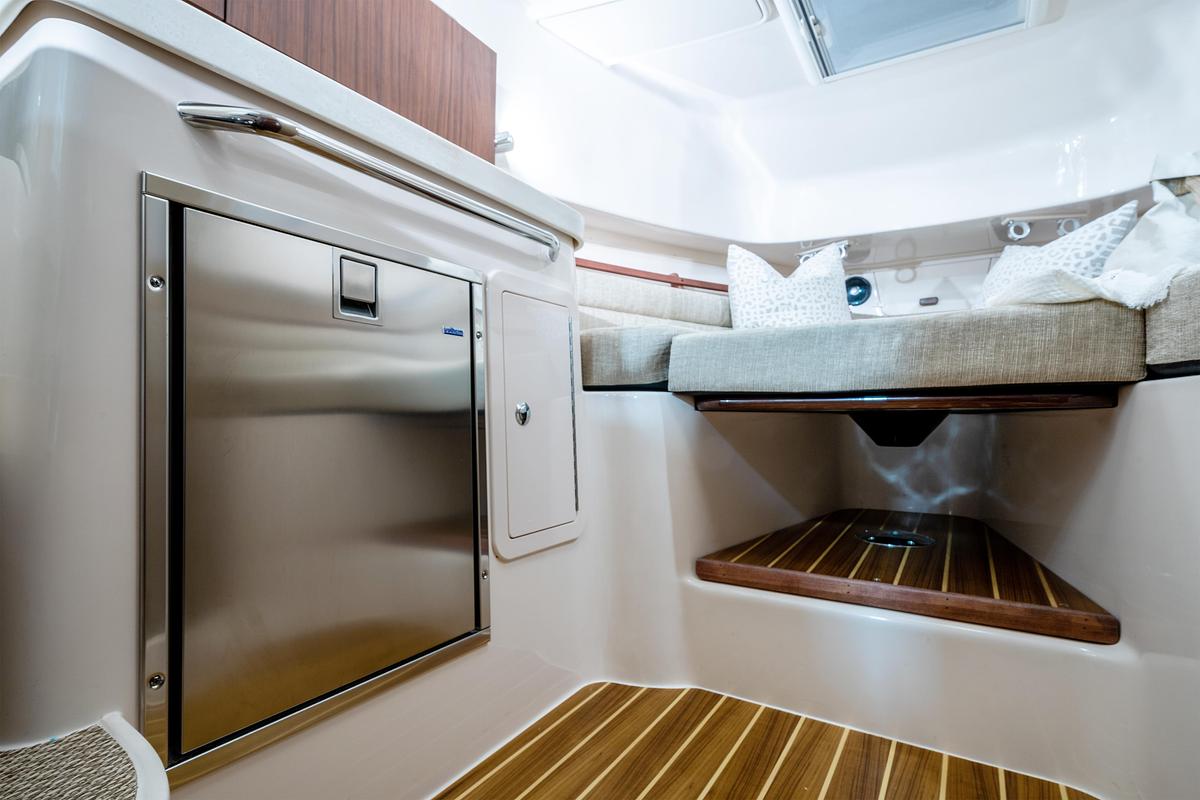

Refrigerator - stainless steel

Rod storage - aft berth horizontal (4)

Rod storage - forward horizontal (6)

Stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth connectivity & remote unit; speakers w/LED lights - helm (2), cabin (2), cockpit (2)

Storage - galley cabinets & counter

Storage - under berth compartments

Storage nets

Stove - electric glass top

Table - cherry

Teak & holly sole

Water heater - 6-gallon (22.7 l), 120V

Water tank - 32-gallon (121.1 l) freshwater

Windows - tinted frameless acrylic w/shade

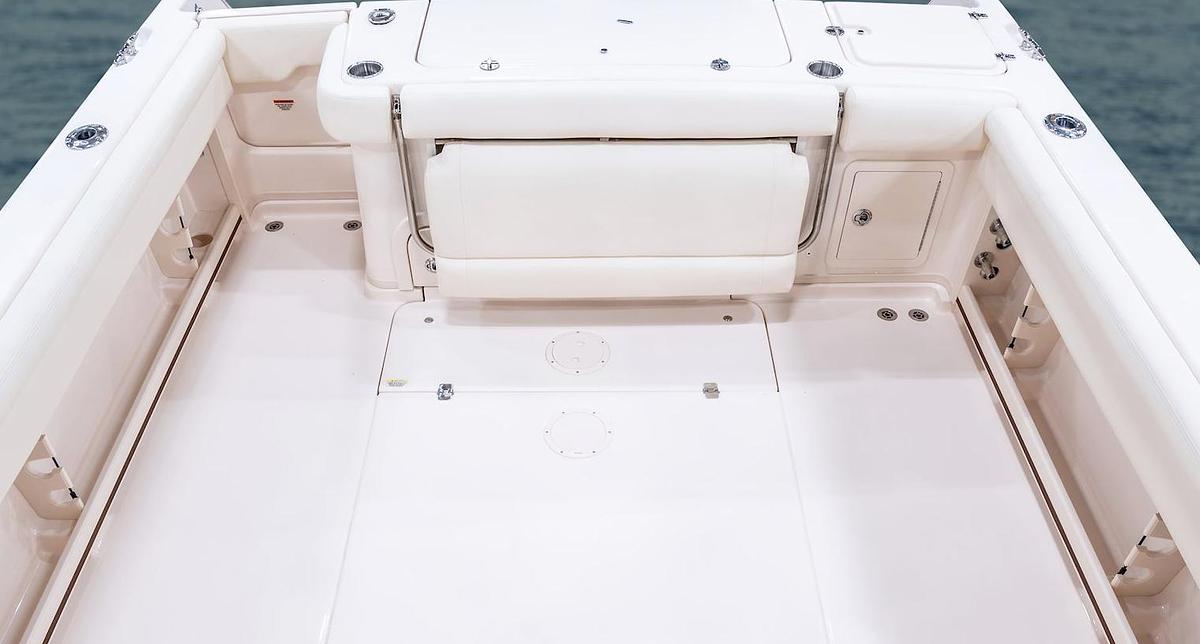

Cockpit & Deck

100% hand laid SeaV² hull & deck

Accessory outlet - 5V duplex USB port

Accessory outlet - 12V

Anchor windlass w/rode, line, and remote switches at helm & windlass

Batteries (4) w/battery select switches (one per engine) & charger system (1)

Bow pulpit w/roller

Cleats

Cockpit bolsters

Cockpit freshwater shower w/hot & cold mixer

Cockpit lights - blue LED

Cockpit side door - port w/boarding ladder

Companion grab rail

Deck hardware - 316 grade stainless steel through-bolted

Dockside power w/galvanic isolator

Drink holders - stainless steel (9)

Engine flush system w/hose attachment aft (one per engine)

Factory engine pre-rigging

Fighting chair reinforcement

Fish box - 290-qt. (274.4 l) aft insulated fish box w/light & ob drain

Flush mount electronics area

Footrests - helm & companion (fold down)

Freshwater level indicator

Fuel capacity - 282 gallons (141-gallon tank, 141-gallon tank) (1067 l)

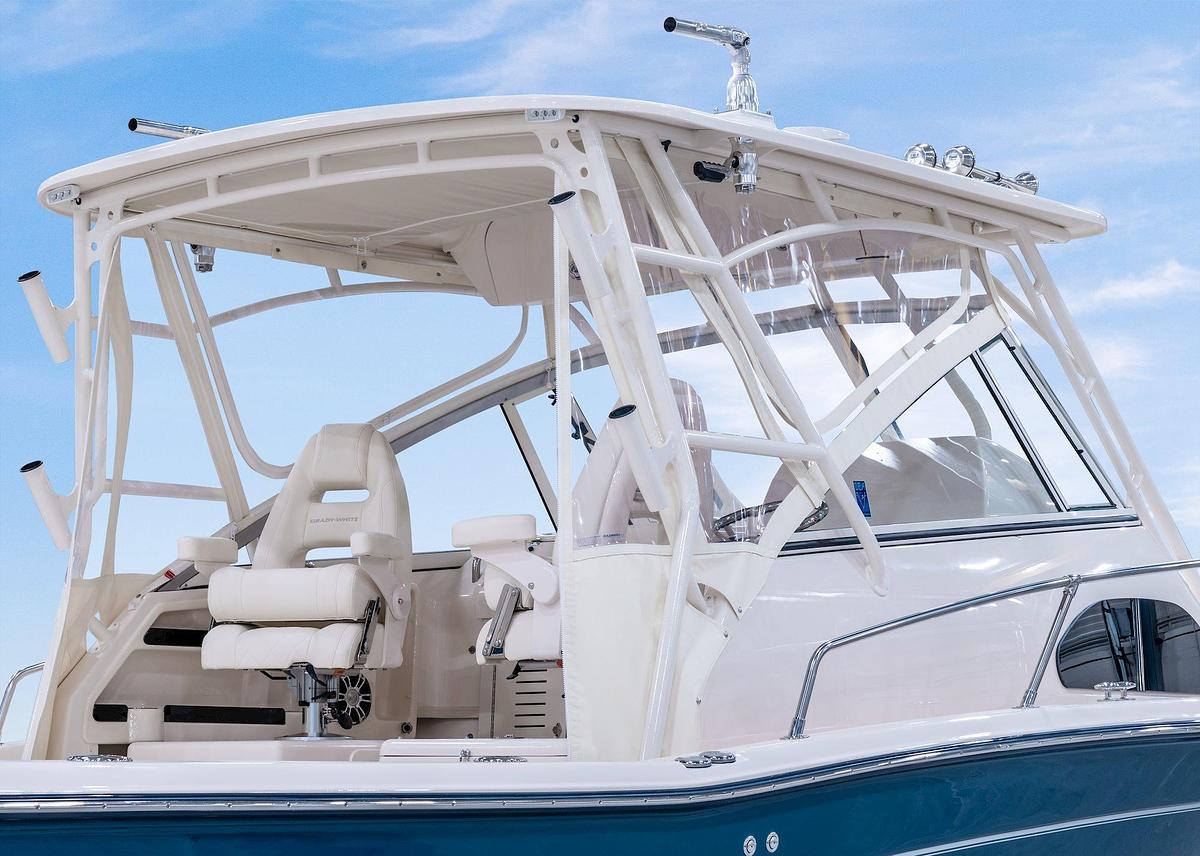

Hardtop w/painted aluminum frame, radio box, storage nets, spreader lights, side mounted rod holders (4), outrigger plates & drop, front & side curtains (ivory)

Hydraulic trim tabs w/indicator & retractor

Integrated outboard mounting system w/swim platform & ladder

International lighting

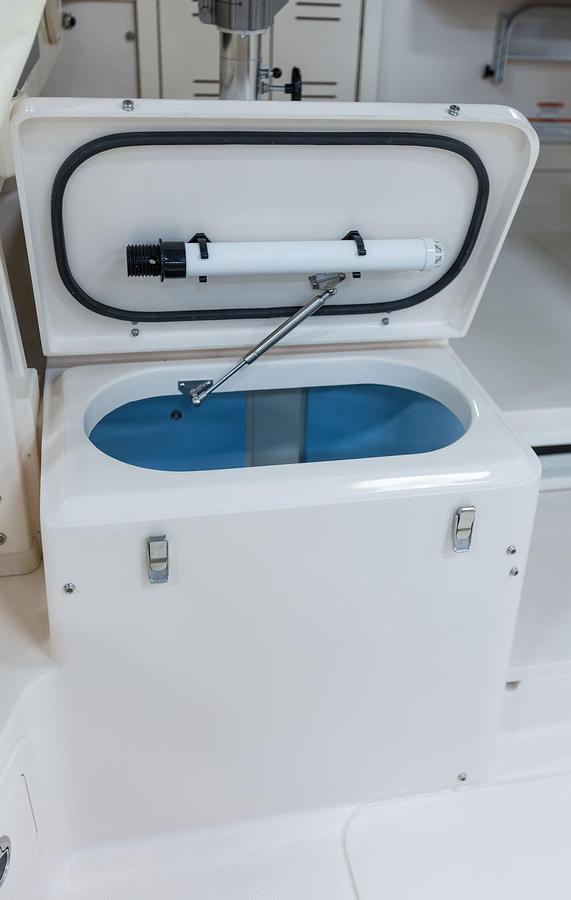

Livewell - 32-gallon (121.1 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)

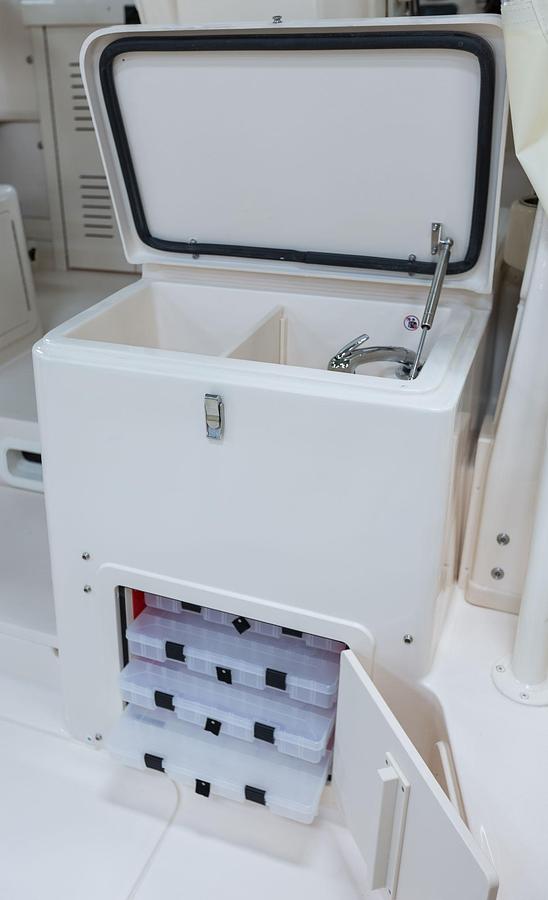

Rigging station - freshwater sink, insulated bait box w/ob drain & lockable drawers

Rod holders - cockpit (4)

Rod storage racks - horizontal (3)

Rubrail - high density PVC w/stainless steel insert

Seating - Command Elite helm & companion chairs (2) horizontally & vertically adjustable w/deluxe cushioning & flip-up bolster

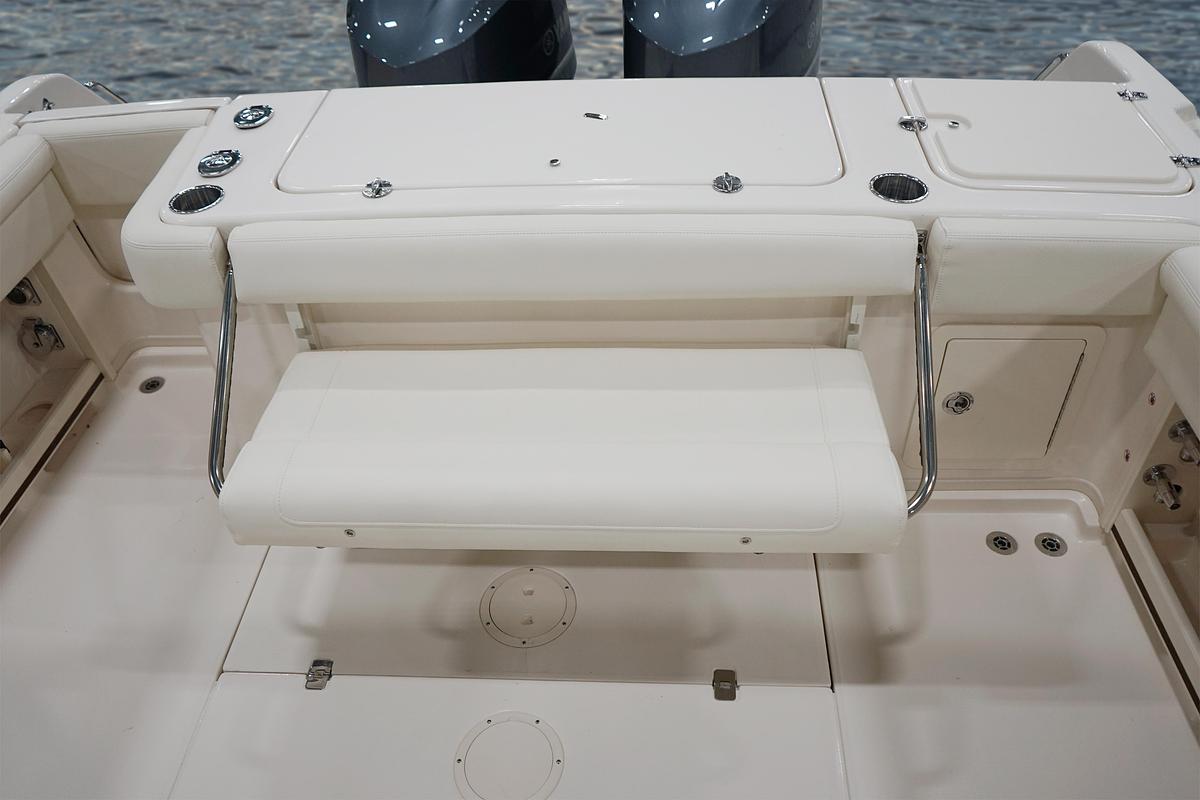

Seating - foldaway aft bench seat w/cushion

Seating - foredeck cushions

Seating - port livewell cushion

Seating - starboard rigging station cushion

Steering - Helm Master EX w/Integrated Digital Electric Steering (does not include joystick)

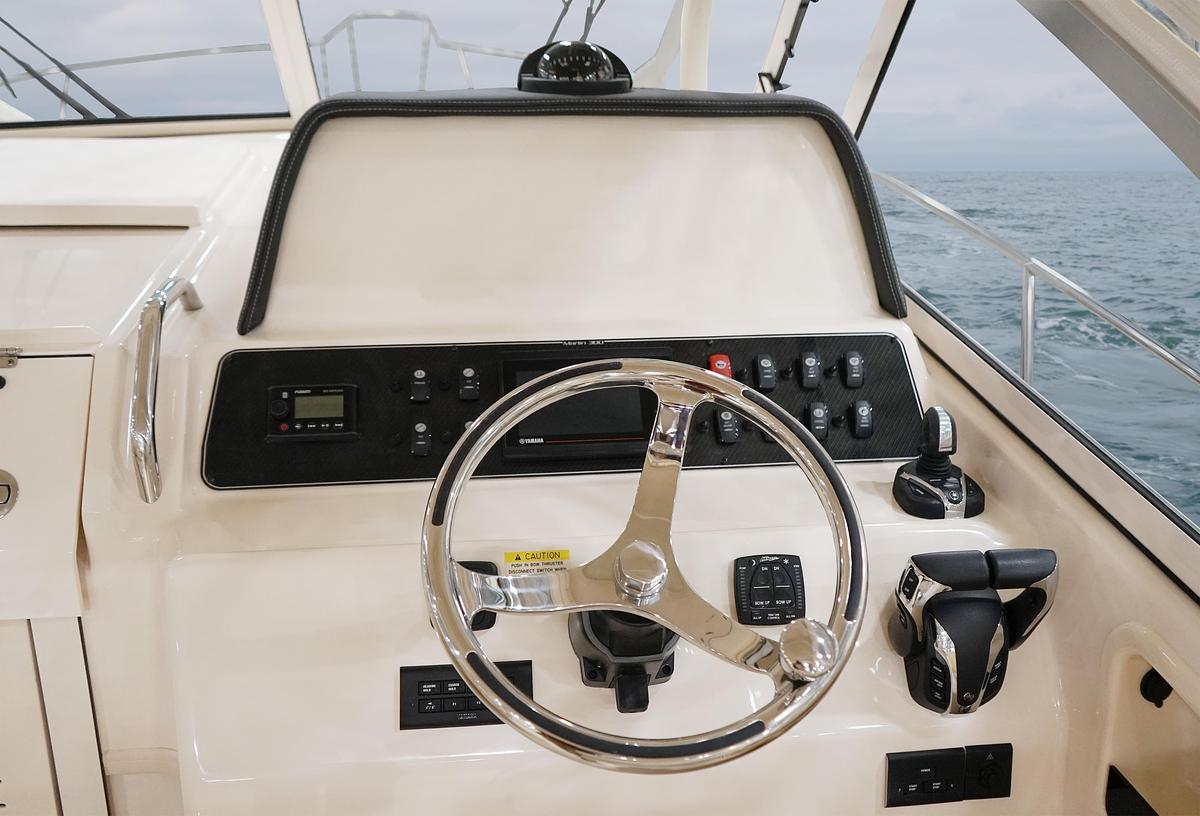

Steering wheel - 316 grade stainless steel w/knob

Stern eyes - 316 grade stainless steel

Storage - aft deck lift out box

Storage - forward anchor locker w/rode storage

Storage - lockable storage under helm & companion seats

Storage - under step compartment

Transducer mounting flats

Transom door - fiberglass

Washdown - freshwater

Washdown - pressurized raw water w/hose

Water tank - 32-gallon (121.1 l)

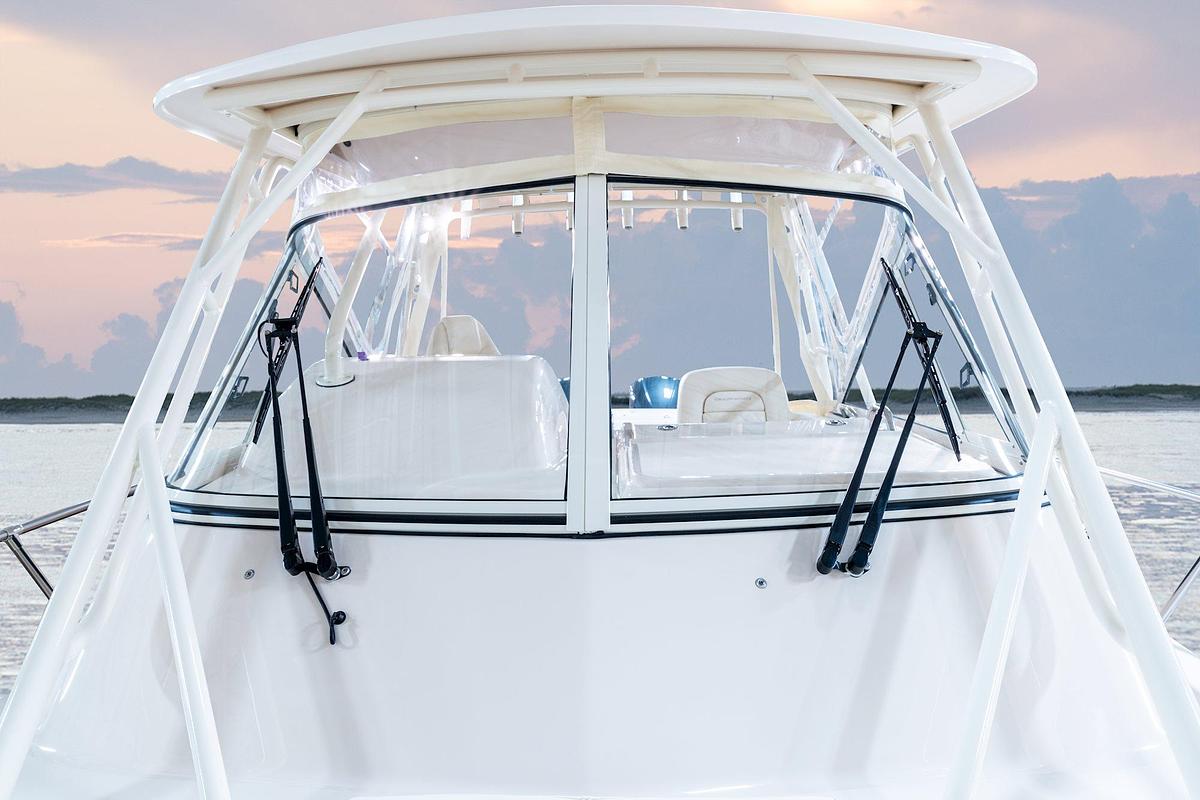

Windshield - tempered glass w/side vents

Windshield wipers w/starboard washer

OPTIONAL FEATURES

Options

Air conditioning - 8000 BTU in cabin

Bow thruster

CE certification package (European Conformity)

Generator - 5kW diesel, 12-gallon (45.4 l) fuel capacity

Hardtop color - underside of fiberglass hardtop (requires matching gelcoat hull color option)

Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat

International AC electrical conversion - 220V (50Hz)

Lighting - underwater blue LED (3)

Outrigger kit - 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles

Painted hardtop top mounted rod holders (6)

Rod storage - folding cabin rack (4)

Seating - companion bench seat (replaces Command Elite companion chair)

Steering - Helm Master EX w/Full Maneuverability

TV - 19" LED flat screen w/HDMI inlet

Marlin 300

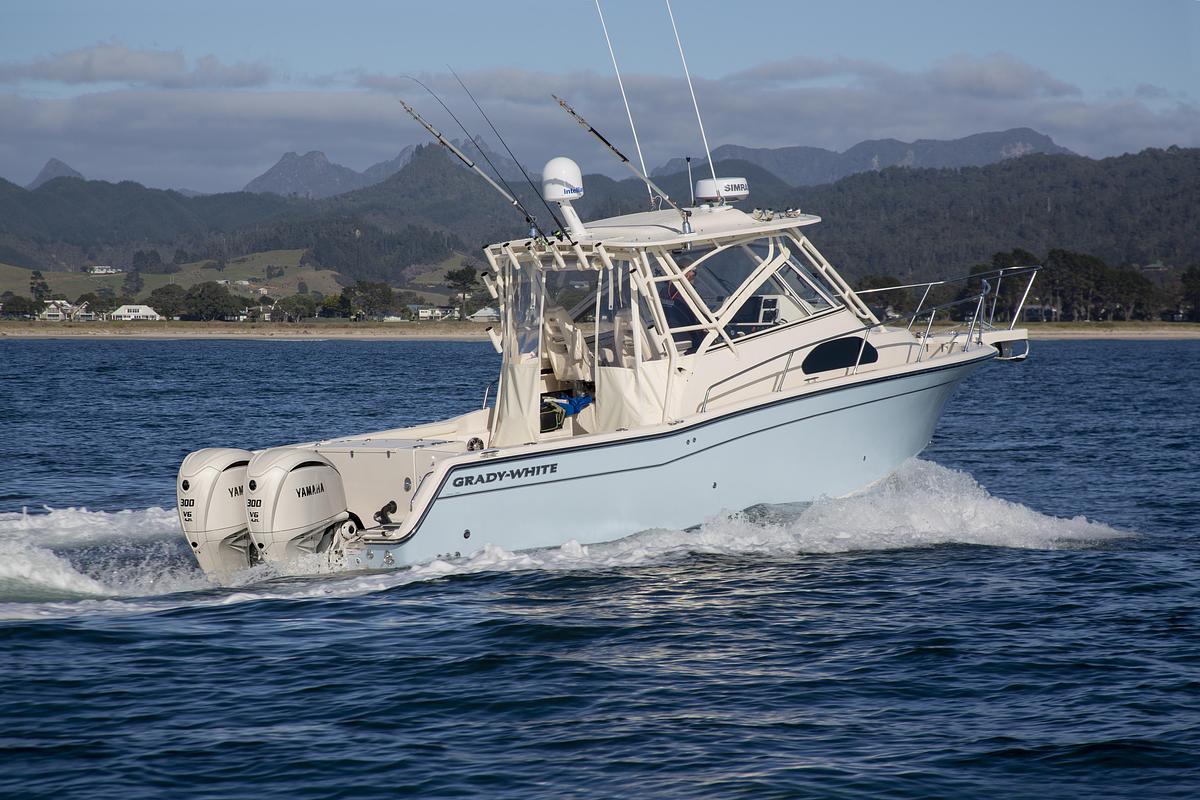

300 Yamaha Four-Stroke

Twin

Engine Size: 4.2L

Test Date: 9/22/2010

Prop Size: 15 1/2 x 17 SWS II SDS

Weight as Tested: 11,697 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop: Yes

Bow Pulpit: Yes

Bottom Paint: No

Optimum Cruise: 29.7 MPH @ 3800 RPM

350 Yamaha Four-Stroke

Twin

Engine Size: 4.3L

Test Date: 5/2/24

Prop Size: 15 1/4 x 19 SWS II SDS

Weight as Tested: 11,411 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop: Yes

Bow Pulpit: No

Bottom Paint: No

Optimum Cruise: 29.6 MPH @ 3500 RPM

PERFORMANCE DISCLAIMERS

The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.
